Article number 696385

Wall and ceiling light

type ..6385

250,20

Specifications

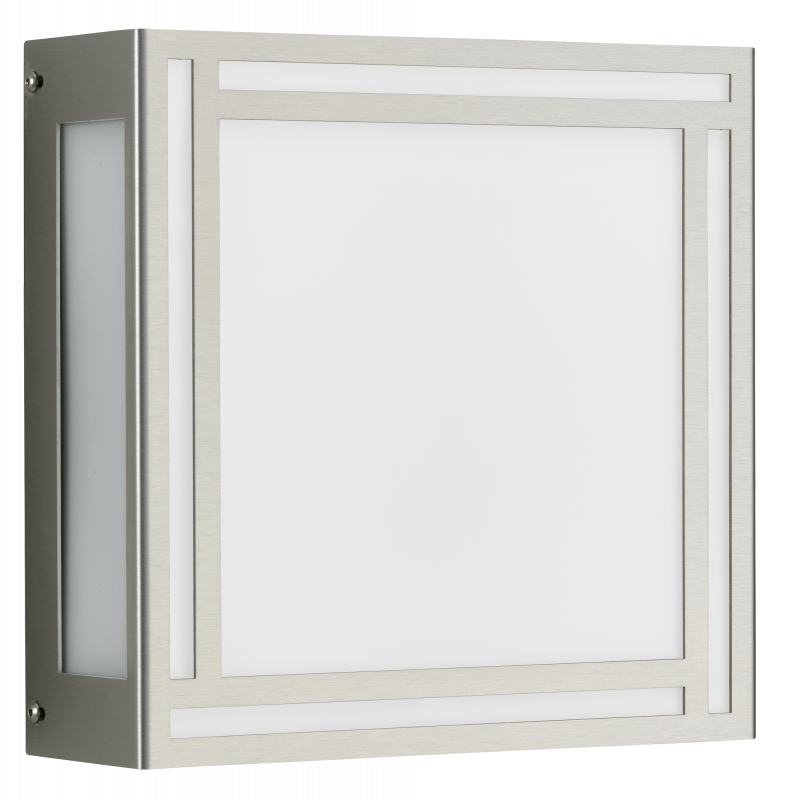

Albert wall and ceiling light 696385
made of stainless steel with opal glass, mounting plate. Equipped with 1 x Bridgelux LED 10W, 770lm, light colour warm-white,3000K, incl. converter for connection to 230V/50Hz.protection class IP 44 – protection class : 255 x 255 x 95 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight 3,50 kg
Nominal voltage

230 V

No dim function

Yes

Height/depth

255 mm

Voltage type

AC

Width

255 mm

Energy efficiency class of the provided exchangeable built-in lamp

E

Colour rendering index CRI

80-89

Type of control gear

LED operating device voltage-controlled

Light sharing

Symmetric

With control gear

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Dimming depending on control gear

Yes

Power factor

0.9

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Colour of light

White

Dimming phase cut-off

Yes

Style

Edelstahl, Modern

Beam angle

Open beam/diffuse

Exchangeable control gear

Yes

Stroboscope effect value SVM

0.4

Height

< 700 mm

Photobiological safety according to EN 62471

RG1

Mounting Type

Decke, Wand

Light output

1-seitig

Type of wiring

Ending

Number of poles

3

Unified Glare Ratio (UGR)

1

Surface protection housing

Untreated

Suitable for wall mounting

Yes

Light output

Direct

Degree of protection (IP)

IP44

Max. system power

10 W

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Protection class

I

Conductor cross section

2.5 mm²

Length

95 mm

Connection type

Screwed terminal

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 25 KB

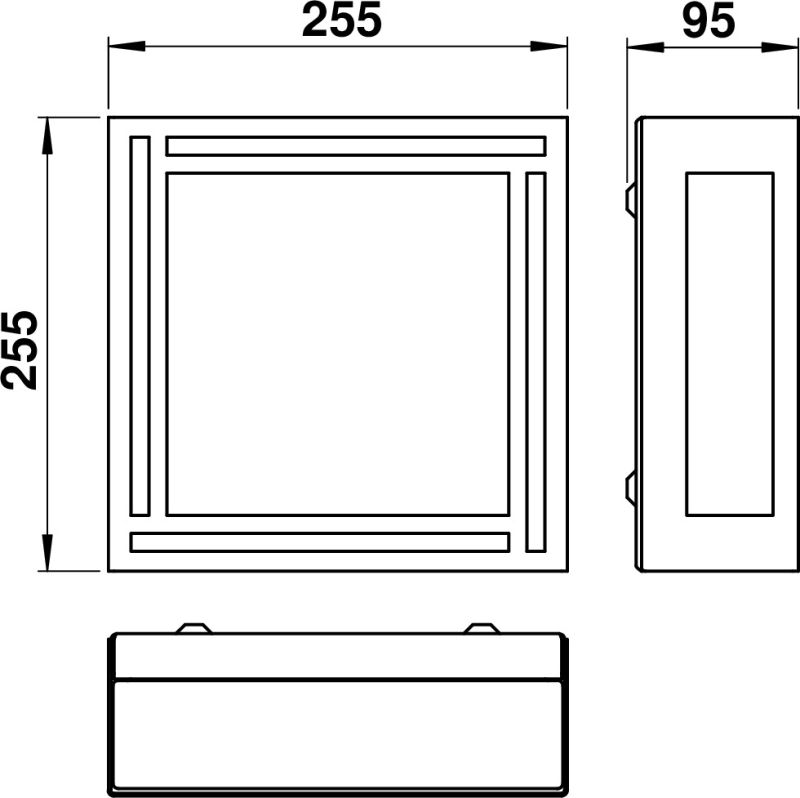

Dimensioned drawing
PDF | 16 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210393 - G 393, glass opal matt show
