Wall and ceiling light

Name: Wall and ceiling light type ..6407
SKU: 696407
Price: 244.30 EUR
Availability: InStock

type ..6407

€244,30

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer

Specifications

Albert wall and ceiling light no.: 696407

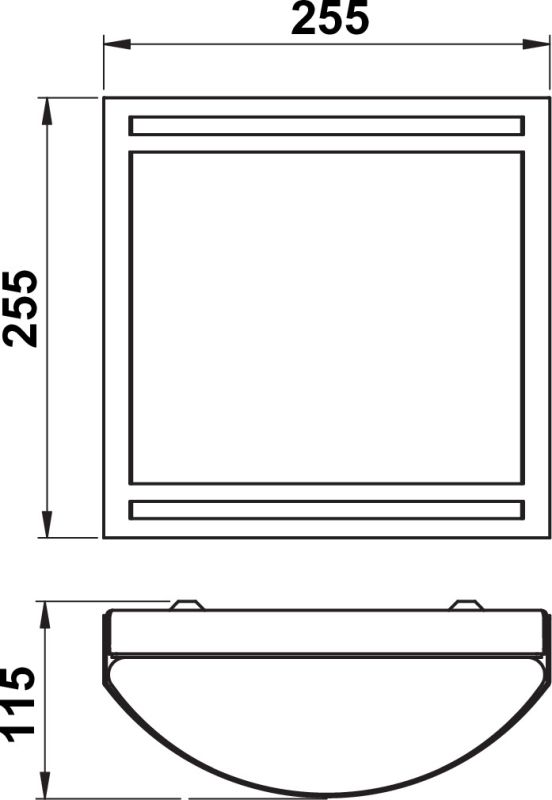

made of stainless steel with opal glass equipped with 1 x LED 10 Watt – 770 lm – 3000 integrated converter and mounting plate colour: stainless steel dimensions: 255 mm x 255 mm x 130 energy efficiency class lamps: A+

Features

Luminaire has IP 44 protection.

Luminaire is equipped with LED components.

LED components can be replaced.

Luminaire is equipped with increased or additional overvoltage protection.

Material housing

Stainless steel

Colour housing

Stainless steel

Lamp type

LED exchangeable

With light source

Yes

Suitable for lamp power

10 W

Rated luminous flux according to IEC 62722-2-1

900 lm

Colour temperature

3000 K

Material cover

Glass opal

Weight	3,20 kg
Nominal voltage	230 V
No dim function	Yes
Height/depth	255 mm
Voltage type	AC
Width	255 mm
Energy efficiency class of the provided exchangeable built-in lamp	E
Colour rendering index CRI	80-89
Type of control gear	LED operating device voltage-controlled
Light sharing	Symmetric
With control gear	Yes
Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Suitable for number of lamps	1
Dimming depending on control gear	Yes
Power factor	0.9
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Colour of light	White
Dimming phase cut-off	Yes
Style	Edelstahl, Modern
Beam angle	Open beam/diffuse
Exchangeable control gear	Yes
Stroboscope effect value SVM	0.4
Height	< 700 mm
Photobiological safety according to EN 62471	RG1
Mounting Type	Decke, Wand
Light output	1-seitig
Type of wiring	Ending
Number of poles	3
Unified Glare Ratio (UGR)	1
Surface protection housing	Untreated
Suitable for wall mounting	Yes
Light output	Direct
Degree of protection (IP)	IP44
Max. system power	10 W
Colour consistency (McAdam ellipse)	SDCM3
Highest energy efficiency class of the exchangeable lamp	A++
Lowest energy efficiency class of the exchangeable lamp	E
Max. number of luminaires per miniature circuit breaker B16	20
Max. number of luminaires per miniature circuit breaker C16	30
Flickering value Pst LM	1
Protection class	I
Conductor cross section	2.5 mm²
Length	115 mm
Connection type	Screwed terminal
Shape	Eckig
