Article number Select a color, please

Wall and ceiling light

type ..6419

194,60223,90

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Nominal voltage

230 V

Suitable for number of lamps

1

Voltage type

AC

With control gear

No, Yes

Dimming phase cut-off

Yes

Type of control gear

LED operating device voltage-controlled

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Colour rendering index CRI

80-89

Max. system power

12 W

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Surface protection housing

Lacquered

Type of wiring

Ending

Style

Modern

Dimming depending on control gear

Yes

Colour of light

White

Power factor

0.9

Length

80 mm

Outer diameter

315 mm

Exchangeable control gear

No, Yes

Number of poles

3

Connection type

Screwed terminal

Mounting Type

Decke, Wand

Light output

1-seitig

No dim function

Yes

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Photobiological safety according to EN 62471

RG1

Stroboscope effect value SVM

0.4

Conductor cross section

2.5 mm²

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 94 KB

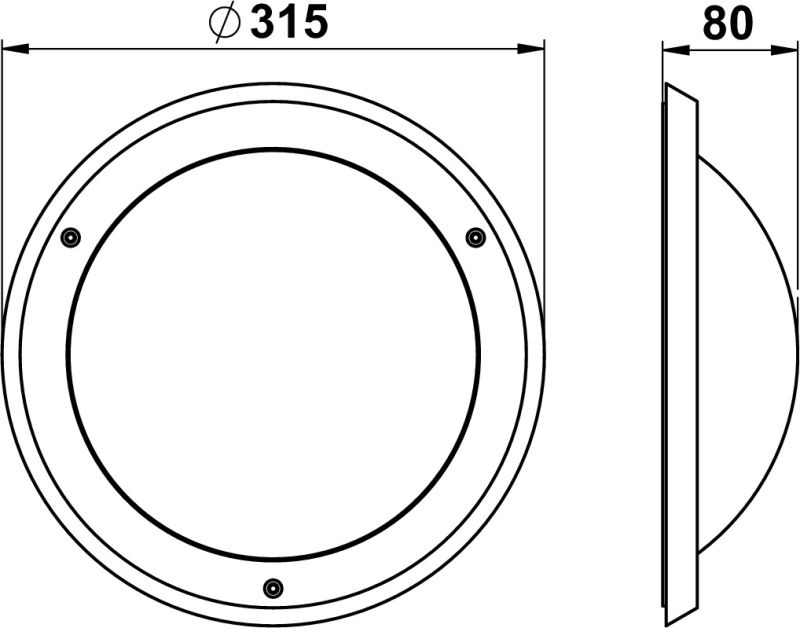

Dimensioned drawing
PDF | 108 KB
Light distribution curve - Eulumdat/LDT
LDT | 896 B
Offertext
For: 626419
TXT | 214 B
Offertext
For: 666419
TXT | 209 B
Offertext
For: 686419
TXT | 209 B
Offertext
For: 696419
TXT | 186 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210305 - G 305, glass round, opal-etched matt show
