Data sheet
Article number
Select a color, please

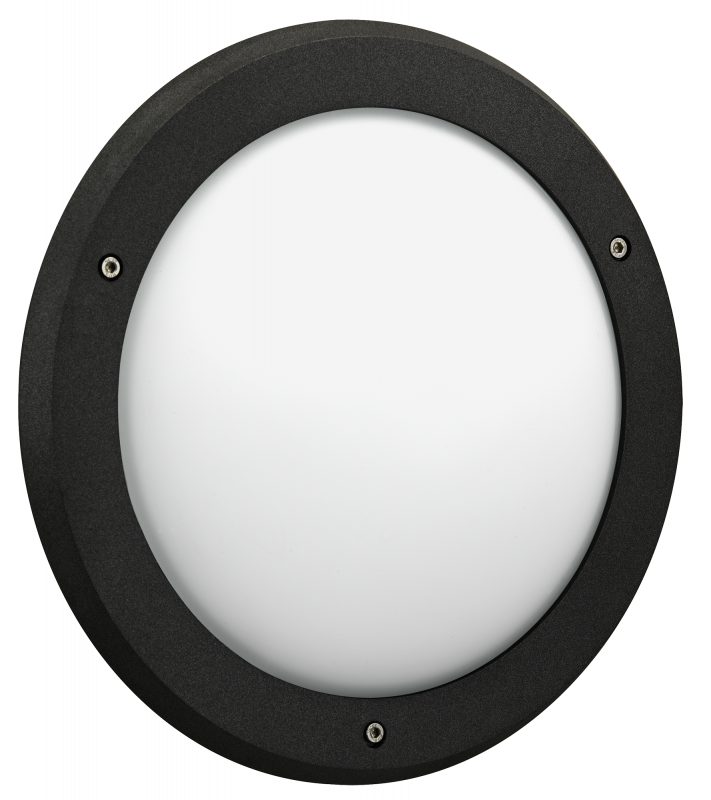

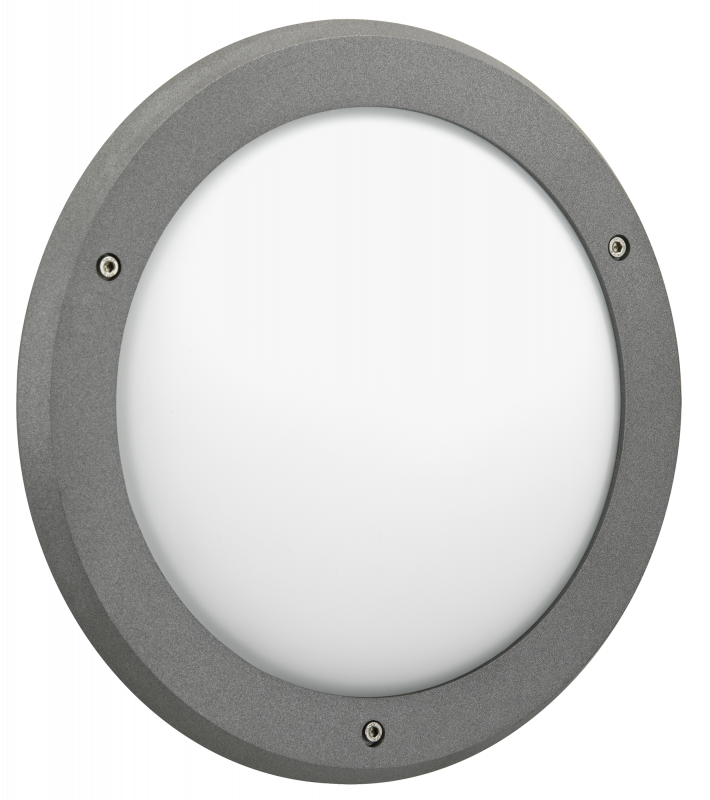

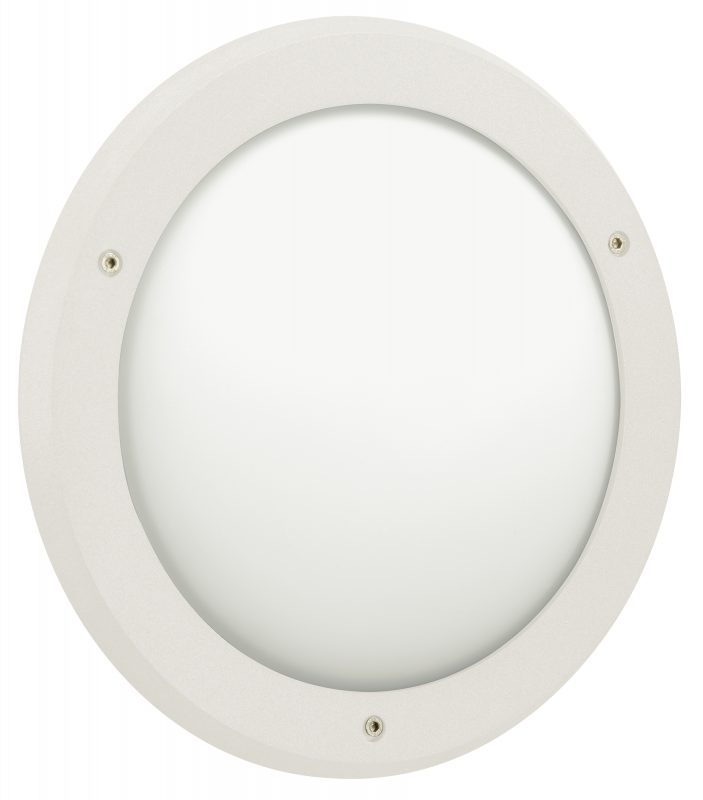

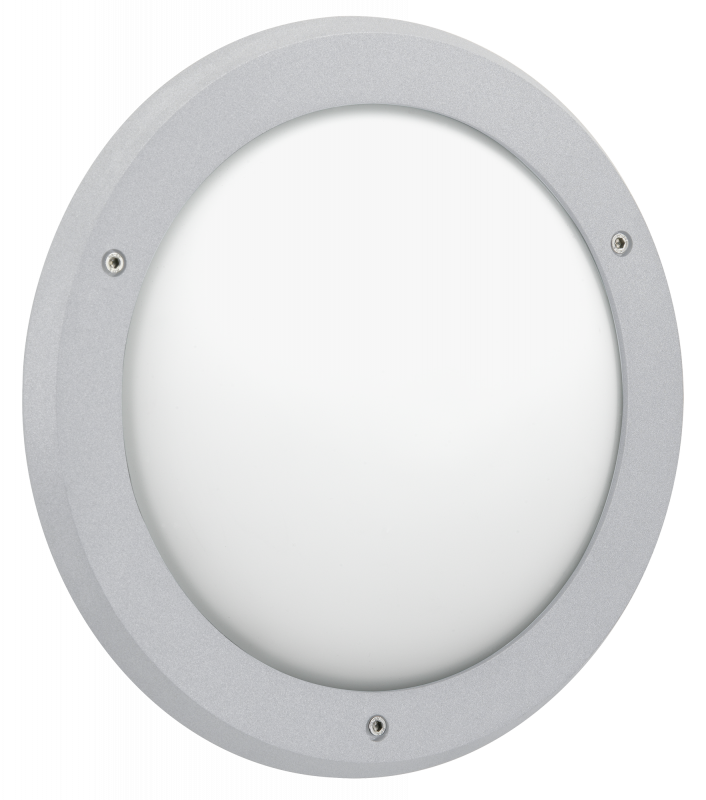

Wall and ceiling light
type ..6419
€194,60 – €223,90
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Nominal voltage | 230 V |
| With control gear | No, Yes |
| Dimming phase cut-off | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Colour rendering index CRI | 80-89 |
| Max. system power | 12 W |
| Light output | Direct |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP44 |
| Protection class | I |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Surface protection housing | Lacquered |
| Stroboscope effect value SVM | 0.4 |
| Type of wiring | Ending |
| Dimming depending on control gear | Yes |
| Colour of light | White |
| Power factor | 0.9 |

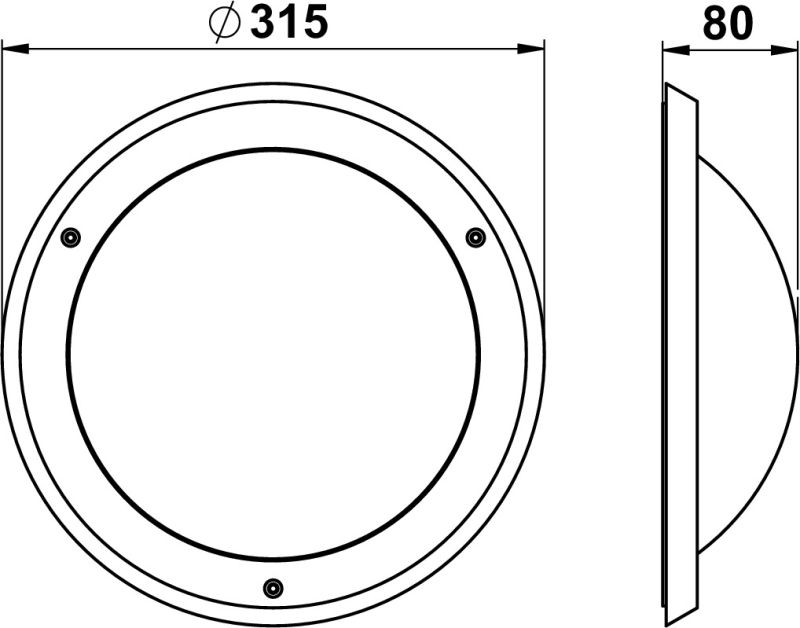

| Length | 80 mm |
| Outer diameter | 315 mm |
| Exchangeable control gear | No, Yes |
| Style | Modern |
| Connection type | Screwed terminal |
| Mounting Type | Decke, Wand |
| Light output | 1-seitig |
| No dim function | Yes |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Photobiological safety according to EN 62471 | RG1 |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
Documents and files
Data sheet
Spare parts
| 90210305 - G 305, glass round, opal-etched matt | show |
