Article number Select a color, please

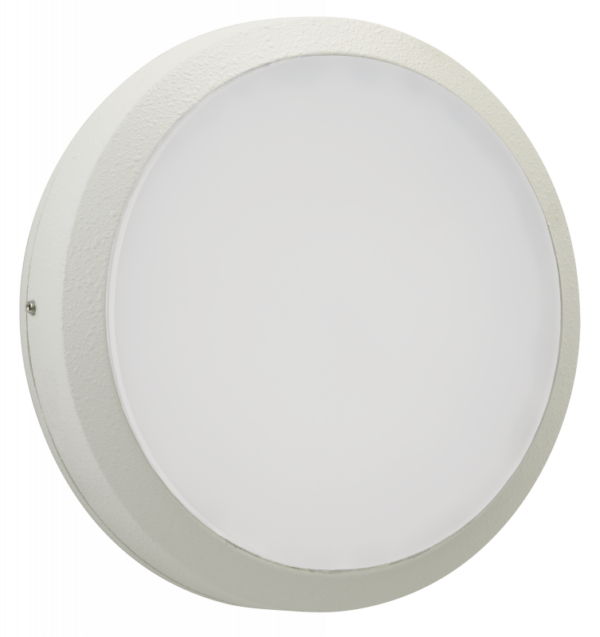

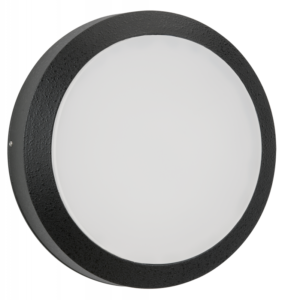

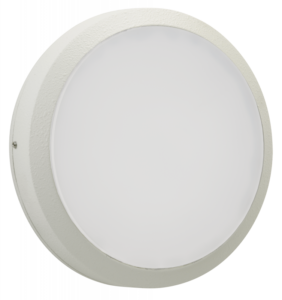

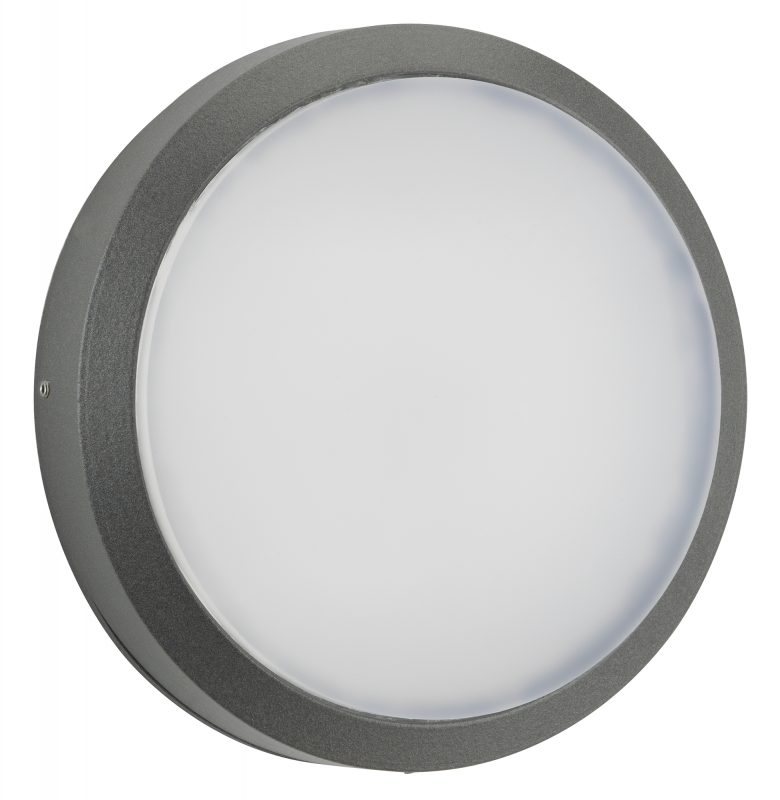

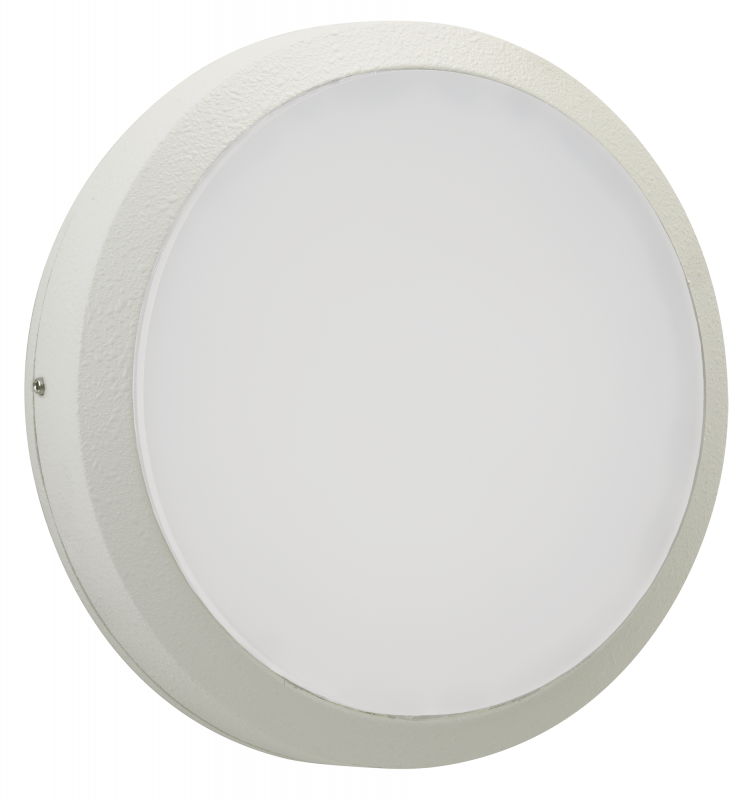

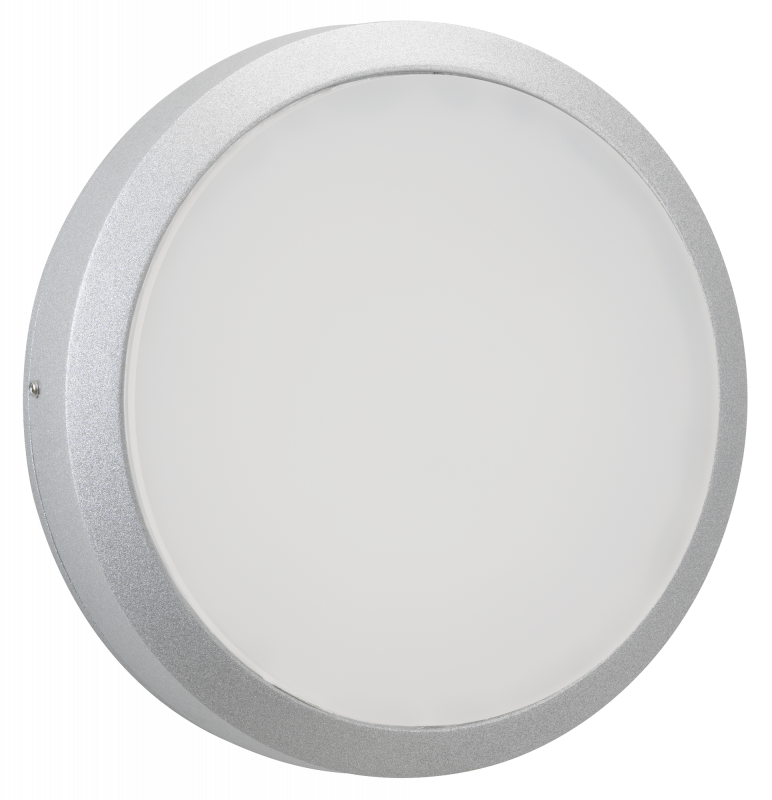

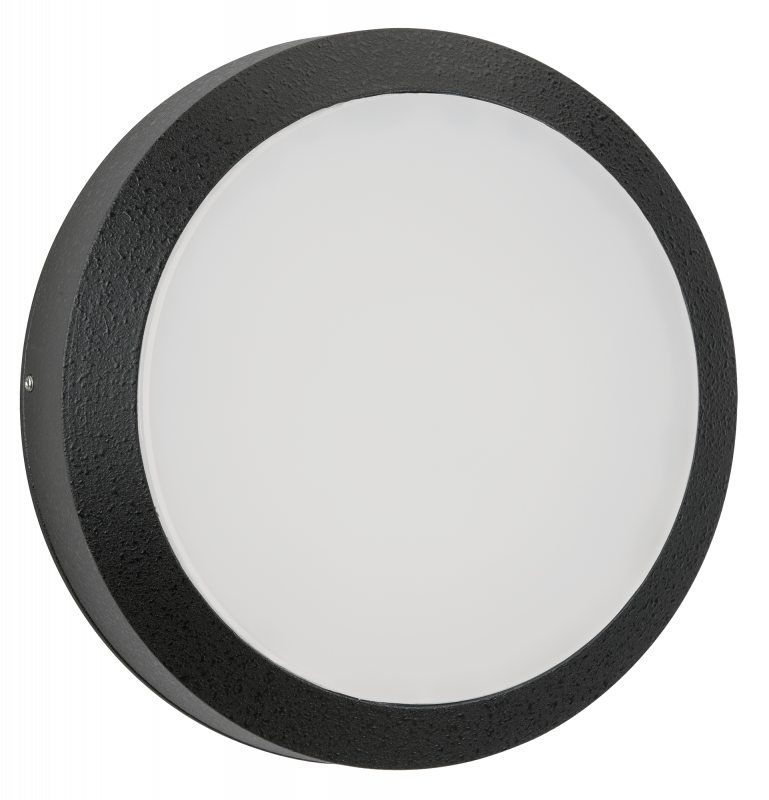

Wall and ceiling light

type ..6420

187,10215,10

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
24 W
Rated luminous flux according to IEC 62722-2-1
2400 lm
Colour temperature
3000 K
Material cover
Plastic, structured
Weight N/A
Suitable for wall mounting

Yes

Type of control gear

LED operating device voltage-controlled

Beam angle

Open beam/diffuse

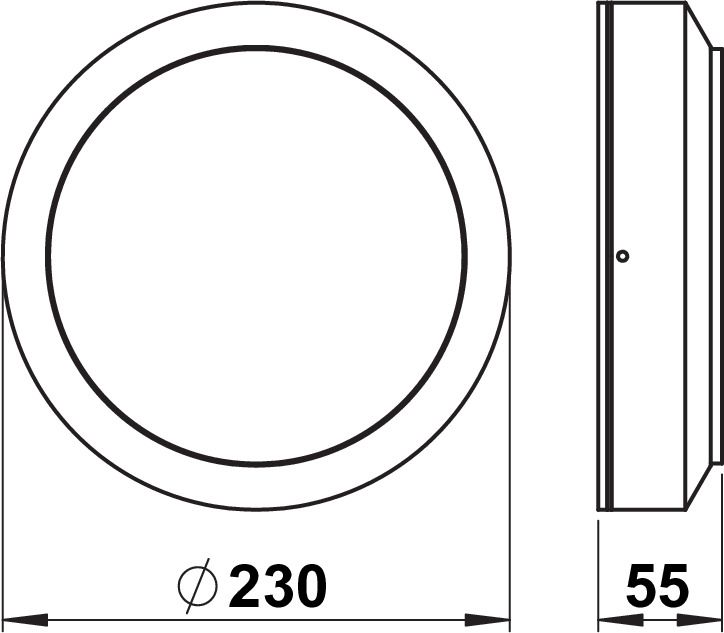

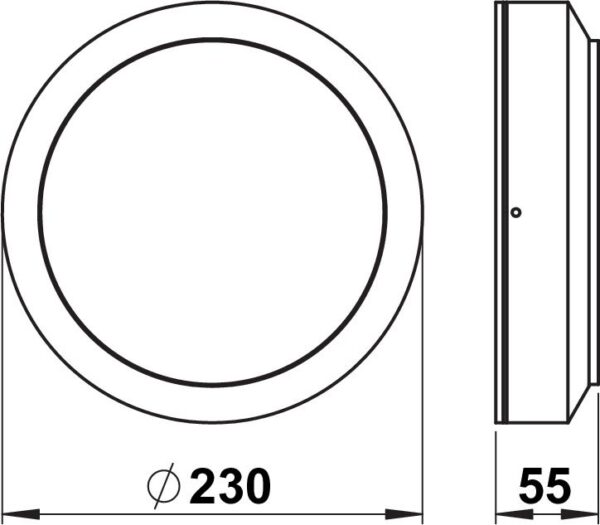

Length

55 mm

Outer diameter

230 mm

Nominal voltage

230 V

Impact strength

IK08

Max. system power

24 W

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

With control gear

Yes

Energy efficiency class of the provided exchangeable built-in lamp

E

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Connection type

Screwed terminal

Light output

1-seitig

Exchangeable control gear

Yes

Stroboscope effect value SVM

0.4

Colour rendering index CRI

80-89

Power factor

0.9

Mounting Type

Decke, Wand

Type of wiring

Ending

Conductor cross section

2.5 mm²

Photobiological safety according to EN 62471

RG1

Surface protection housing

Lacquered

No dim function

Yes

Light output

Direct

Light sharing

Symmetric

Colour of light

White

Voltage type

AC

Degree of protection (IP)

IP54

Style

Modern

Colour consistency (McAdam ellipse)

SDCM3

Dimming depending on control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Number of poles

3

Unified Glare Ratio (UGR)

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 86 KB
Dimensioned drawing
PDF | 220 KB
Light distribution curve - Eulumdat/LDT
LDT | 743 B
Offertext
For: 626420
TXT | 275 B
Offertext
For: 666420
TXT | 272 B
Offertext
For: 686420
TXT | 270 B
Offertext
For: 696420
TXT | 255 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90270458 - G 458, acrylic disc show
