Data sheet
Article number
Select a color, please

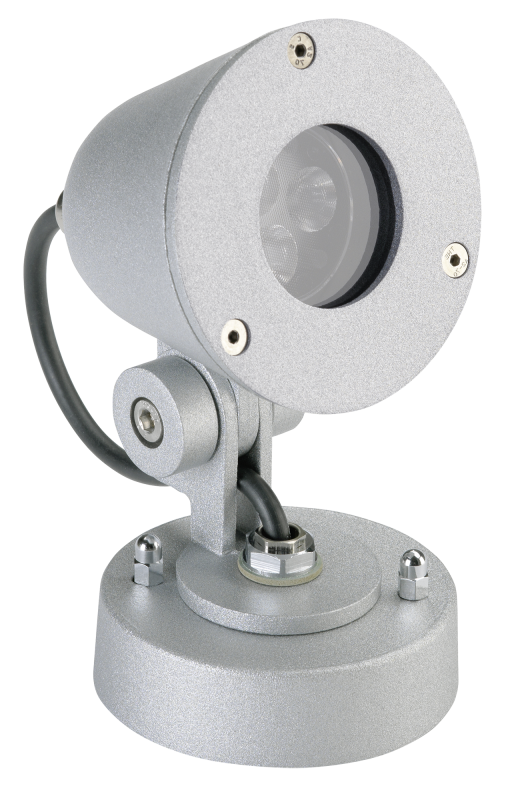

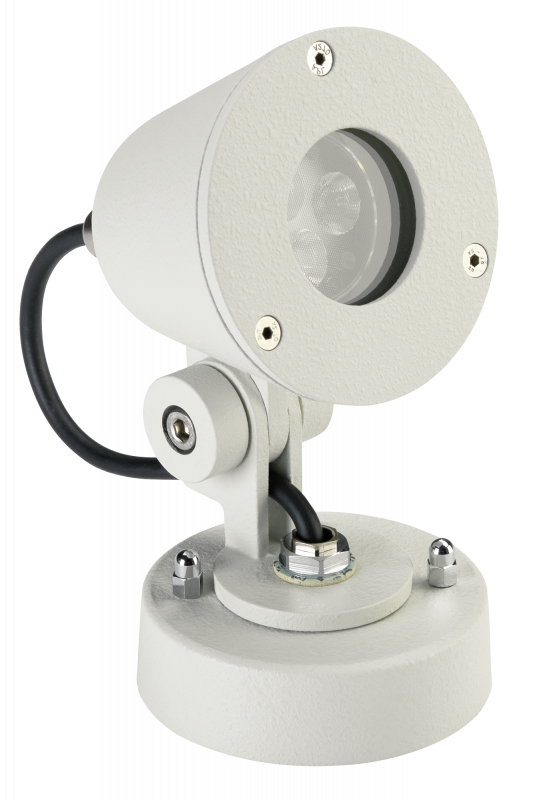

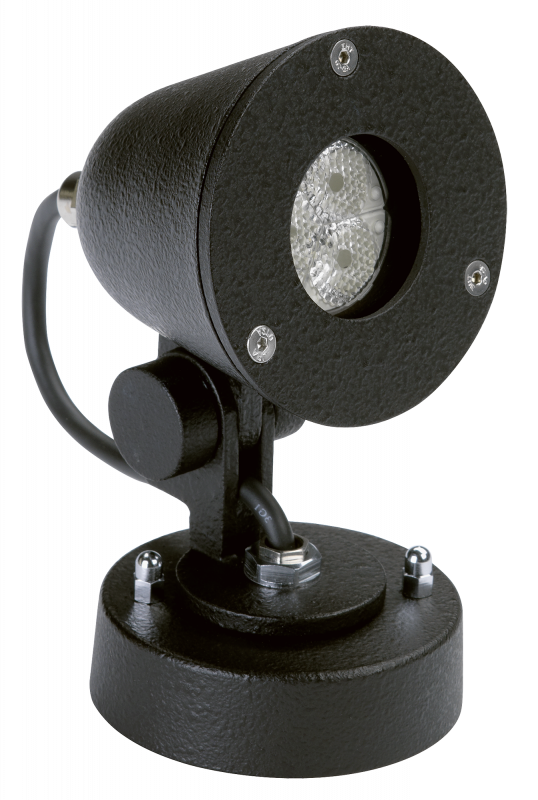

Wall floodlight
type ..2131
This product is no longer in our assortment.
Nicht lieferbar
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
The luminaire body can be rotated.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
4.5 W
Rated luminous flux according to IEC 62722-2-1
330 lm
Colour temperature
3000 K
Material cover
Glass transparent
| Weight | N/A |
|---|---|

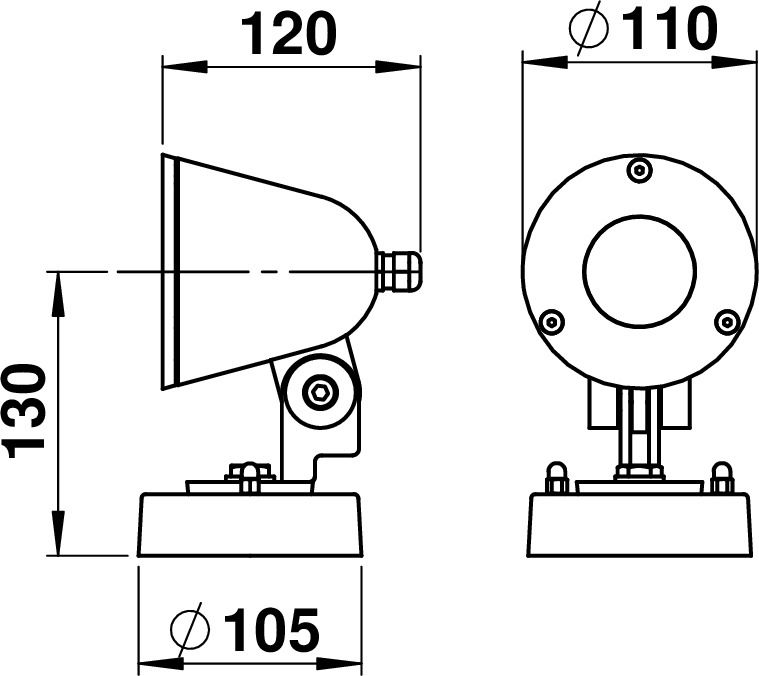

| Height/depth | 130 mm |
| Suitable for ceiling mounting | Yes |
| Suitable for pedestal/floor mounting | Yes |
| Suitable for number of lamps | 1 |
| Beam angle | Medium beam 21-40° |
| Adjustability | Rotating and swivelling |
| Degree of protection (IP) | IP54 |
| With control gear | Yes |
| Voltage type | AC/DC |
| Nominal voltage | 230 V |
| Surface protection | Lacquered |
| Dimming phase cut-off | Yes |
| Light output | Direct |
| Max. system power | 4.5 W |
| Length | 120 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Type of control gear | LED operating device voltage-controlled |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Outer diameter | 110 mm |
| Colour rendering index CRI | 80-89 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Number of poles | 3 |
| Power factor | 0.9 |
| Suitable for surface mounting | Yes |
| Protection class | I |
| Light sharing | Symmetric |
| Luminous flux | 330 lm |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| No dim function | Yes |
| Beam angle adjustable | Continuously variable |
| Colour of light | White |
| Type of wiring | Ending |
| Mounting Type | Decke |
| Height | < 700 mm |
| Suitable for wall mounting | Yes |
| Exchangeable control gear | Yes |
| Flickering value Pst LM | 1 |
| Light output | 1-seitig |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
Documents and files
Data sheet
