Data sheet

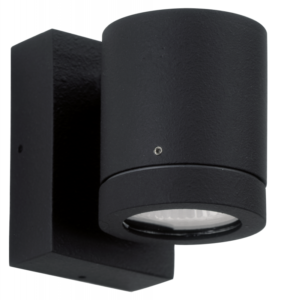

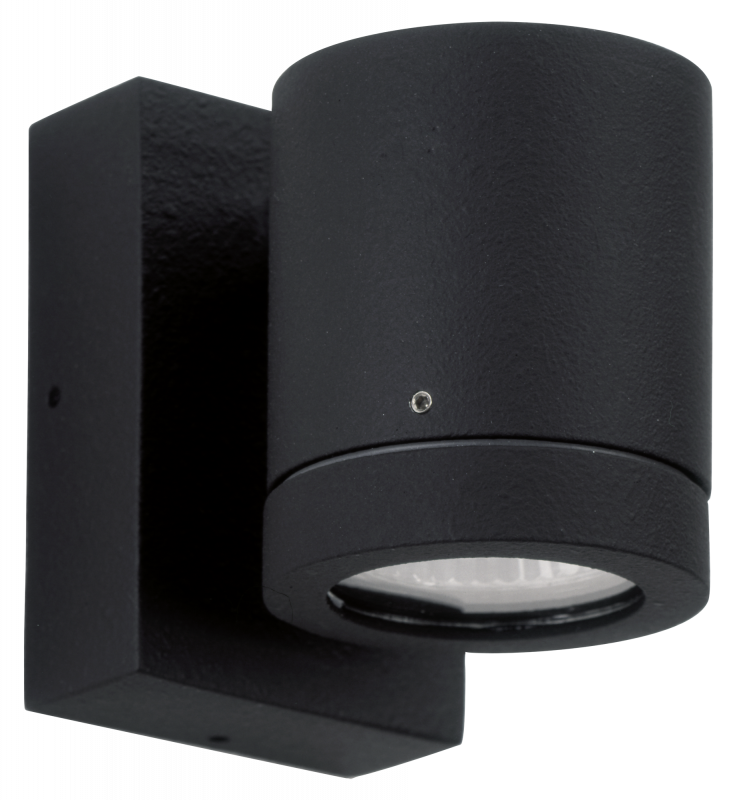

Wall floodlight Black Product Image Article 662193

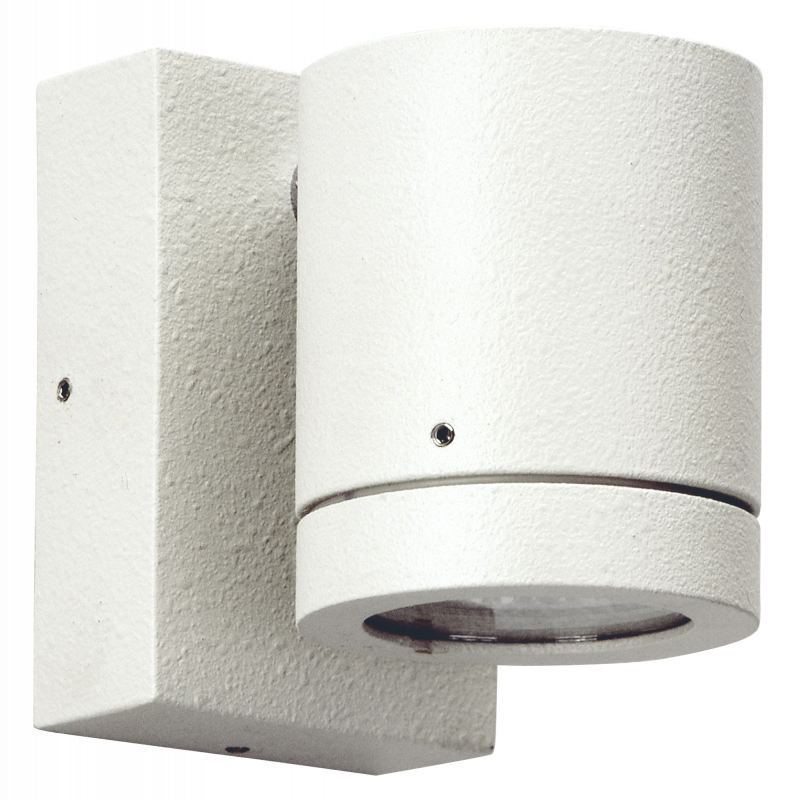

Wall floodlight White Product Image Article 682193

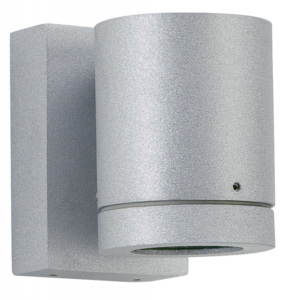

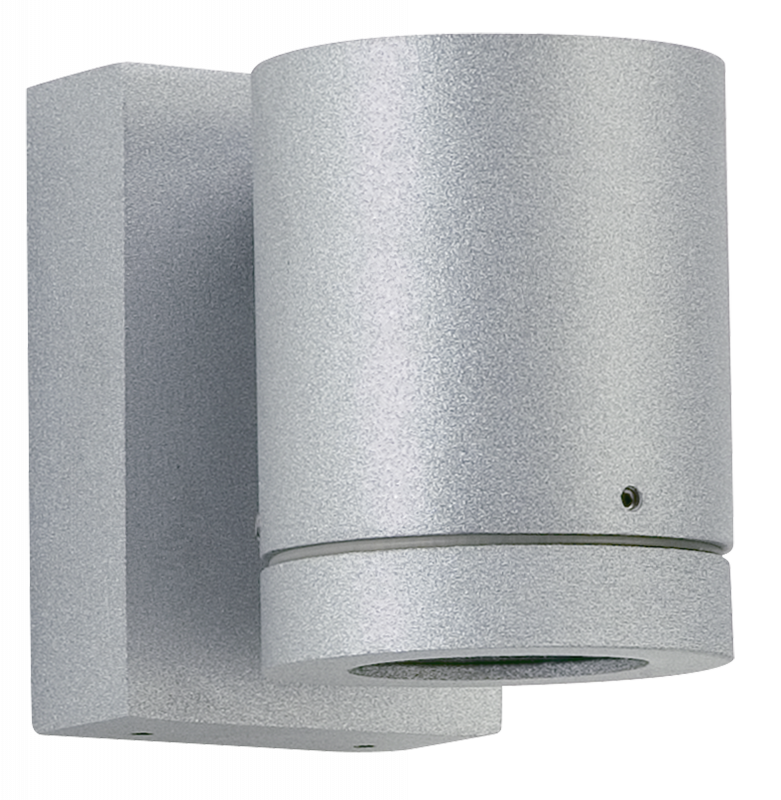

Wall floodlight Silver Product Image Article 692193

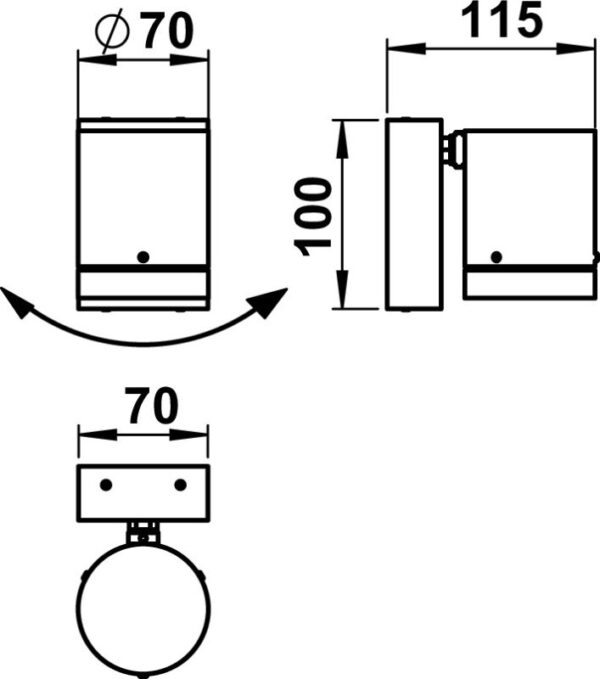

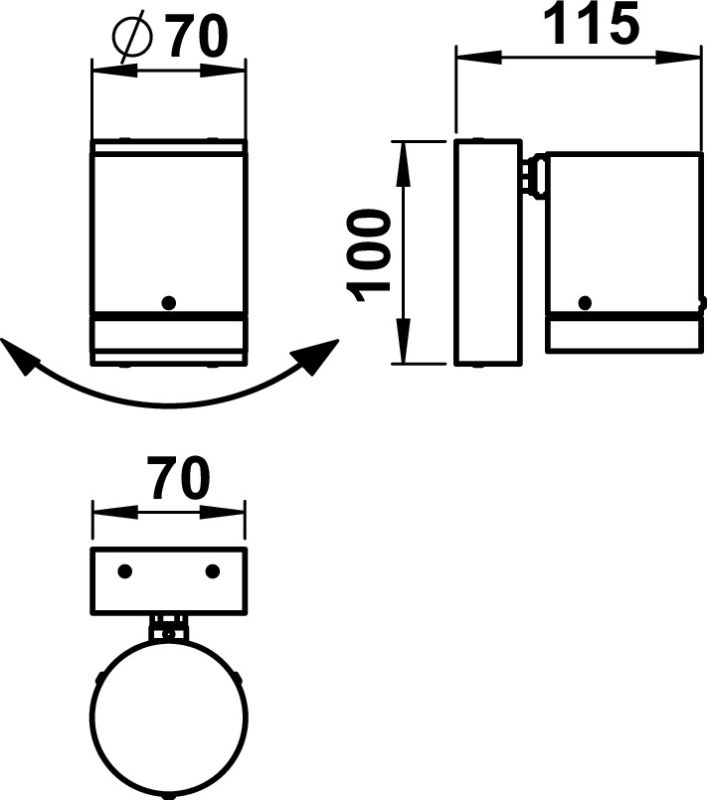

Wall floodlight Dimensioned drawing Article 662193, 682193, 692193
Wall floodlight Black Product Image Article 662193
Wall floodlight Dimensioned drawing Article 662193, 682193, 692193
Wall floodlight White Product Image Article 682193
Wall floodlight Dimensioned drawing Article 662193, 682193, 692193
Wall floodlight Silver Product Image Article 692193
Wall floodlight Dimensioned drawing Article 662193, 682193, 692193
Article number Select a color, please

Wall floodlight

type ..2193

€159,50 – €183,20

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Reflector lamp replaceable Product-Icon The reflector lamp is replaceable.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
GU10
Suitable for lamp power
50 W
Material cover
Glass transparent
Documents and files
Assembly instruction
download PDF 23.69 KB
Dimensioned drawing
download PDF 41.12 KB
Light distribution curve - Eulumdat/LDT
download LDT 2.17 KB
Offertext
For: 662193
download TXT 265 B
Offertext
For: 682193
download TXT 265 B
Offertext
For: 692193
download TXT 242 B
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90220165 - G 165, borosilicate round discs show
Accessories
90750105 - LED PAR 16 show

Additional information

Weight N/A
Suitable for surface mounting

Yes
Voltage type

AC
Height/depth

100 mm
Suitable for pedestal/floor mounting

Yes
Beam angle

Medium beam 21-40°
Colour housing

Black, Silver, White
Lamp holder

GU10
Nominal voltage

230 V
Light output

Direct
Material housing

Aluminium
Dimming depending on control gear

Yes
Material cover

Glass transparent
Lamp type

HV halogen lamp
Type of control gear

Not required
Suitable for number of lamps

1
Type of wiring

Ending
Max. system power

50 W
Power factor

1
Surface protection

Lacquered
Adjustability

Rotatable
Number of poles

3
Dimming phase cut-off

Yes
Connectable conductor cross section

0.75 – 2.5 mm²
No dim function

Yes
Outer diameter

70 mm
Protection class

I
Connection type

Screwed terminal
Length

115 mm
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Suitable for lamp power

50 W
Light sharing

Symmetric
Luminous flux

0 – 3000 lm
Light output

1-seitig
Height

< 700 mm
Suitable for wall mounting

Yes
Degree of protection (IP)

IP54
Conductor cross section

2.5 mm²
Beam angle adjustable

Continuously variable
Unified Glare Ratio (UGR)

1
Shape

Eckig
Style

Landhaus
