Weight	N/A
Suitable for surface mounting	Yes
Voltage type	AC/DC
Suitable for pedestal/floor mounting	Yes

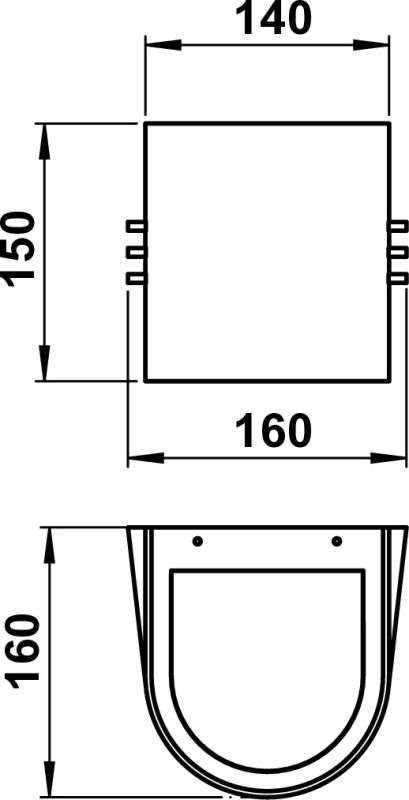

Length	160 mm
Protection class	I
Suitable for number of lamps	2
Energy efficiency class of the provided exchangeable built-in lamp	E
Adjustability	Not adjustable
Light sharing	Symmetric
Beam angle	Medium beam 21-40°
Degree of protection (IP)	IP44
Surface protection	Lacquered
With control gear	Yes
Dimming phase cut-off	Yes
Nominal voltage	230 V
Type of control gear	LED operating device voltage-controlled
Height	< 700 mm
Height/depth	150 mm
Colour rendering index CRI	80-89
Max. system power	6 W
Light output	Direct/indirect
Luminous flux	660 lm
Light output	2-seitig
Suitable for wall mounting	Yes
Exchangeable control gear	Yes
Colour of light	White
Number of poles	3
Conductor cross section	2.5 mm²
Connectable conductor cross section	0.75 – 2.5 mm²
Connection type	Screwed terminal
Type of wiring	Ending
Shape	Eckig
Flickering value Pst LM	1
Beam angle adjustable	Continuously variable
Stroboscope effect value SVM	0.4
Max. number of luminaires per miniature circuit breaker B16	20
Max. number of luminaires per miniature circuit breaker C16	30
Unified Glare Ratio (UGR)	1
Power factor	0.9
Width	140 mm
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
No dim function	Yes
Colour consistency (McAdam ellipse)	SDCM3

Wall floodlight
