Data sheet
Article number
Select a color, please

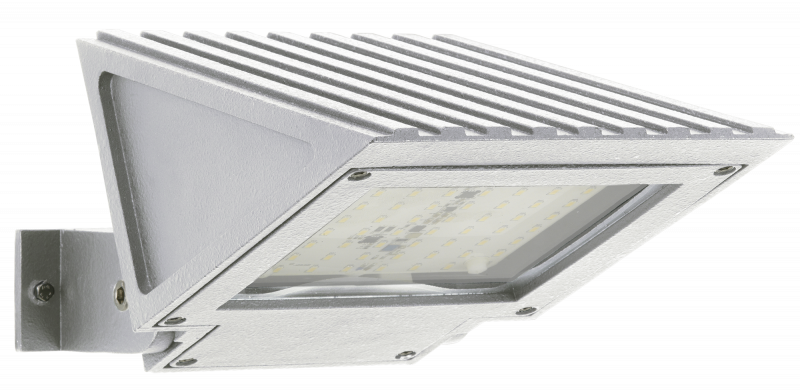

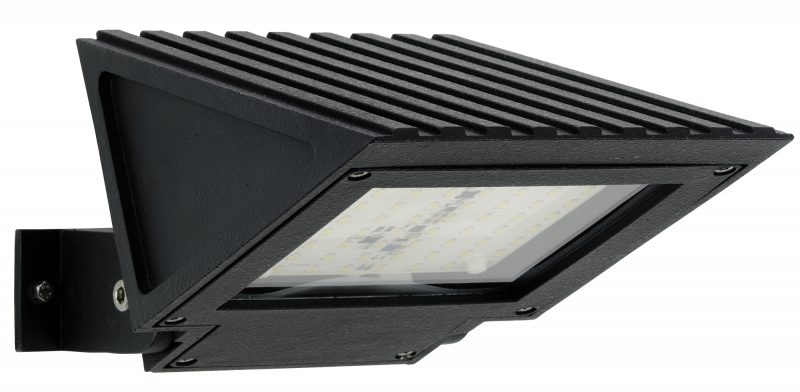

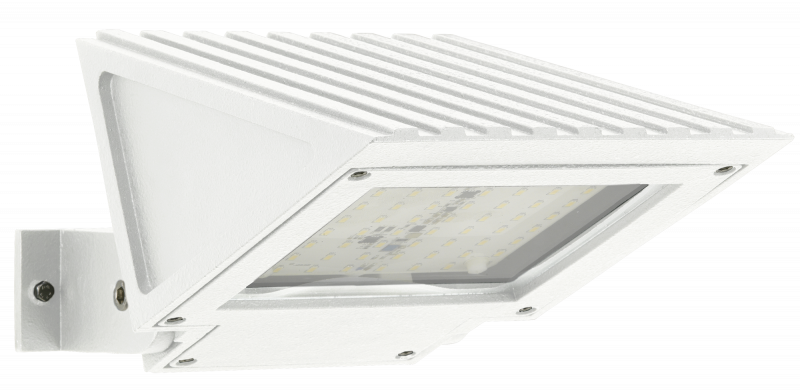

Wall floodlight
type ..2411
€414,70 – €464,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
32 W
Rated luminous flux according to IEC 62722-2-1
3200 lm
Colour temperature
3000 K
Material cover
Glass transparent
| Weight | N/A |
|---|---|
| Suitable for surface mounting | Yes |
| Reflector | High-gloss |
| Length | 290 mm |
| Colour rendering index CRI | 80-89 |
| Voltage type | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for pedestal/floor mounting | Yes |
| With control gear | Yes |
| Adjustability | Swivelling |
| Surface protection | Lacquered |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| Dimming phase cut-off | Yes |
| Degree of protection (IP) | IP54 |
| Beam angle | Medium beam 21-40° |
| Width | 190 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Flickering value Pst LM | 1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Suitable for number of lamps | 1 |
| Light sharing | Symmetric |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Max. system power | 32 W |
| Number of poles | 3 |
| Light output | Direct |
| Connection type | Screwed terminal |
| Type of wiring | Ending |
| Colour of light | White |
| Luminous flux | 3200 lm |
| Power factor | 0.9 |
| Conductor cross section | 2.5 mm² |
| Protection class | I |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Height/depth | 125 mm, 150 mm |
| Shape | Eckig |
| Mounting Type | Decke |
| Light output | 1-seitig |
| Height | < 700 mm |
| Suitable for wall mounting | Yes |
| Exchangeable control gear | Yes |
| Beam angle adjustable | Continuously variable |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Style | Landhaus |
Documents and files
Data sheet
Spare parts
| 90220320 - G 320, borosilicate glass, clear | show |
