Data sheet
Article number
Select a color, please

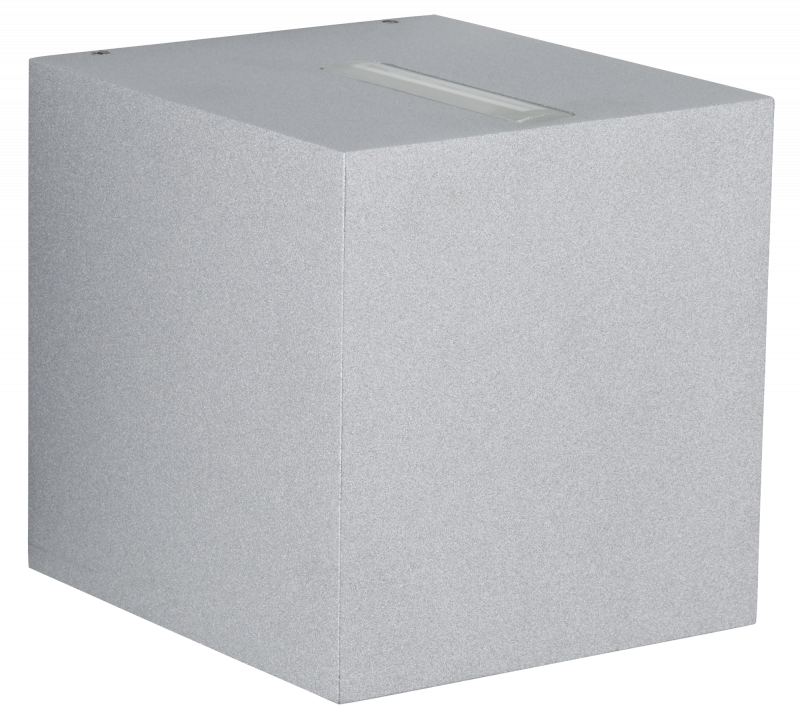

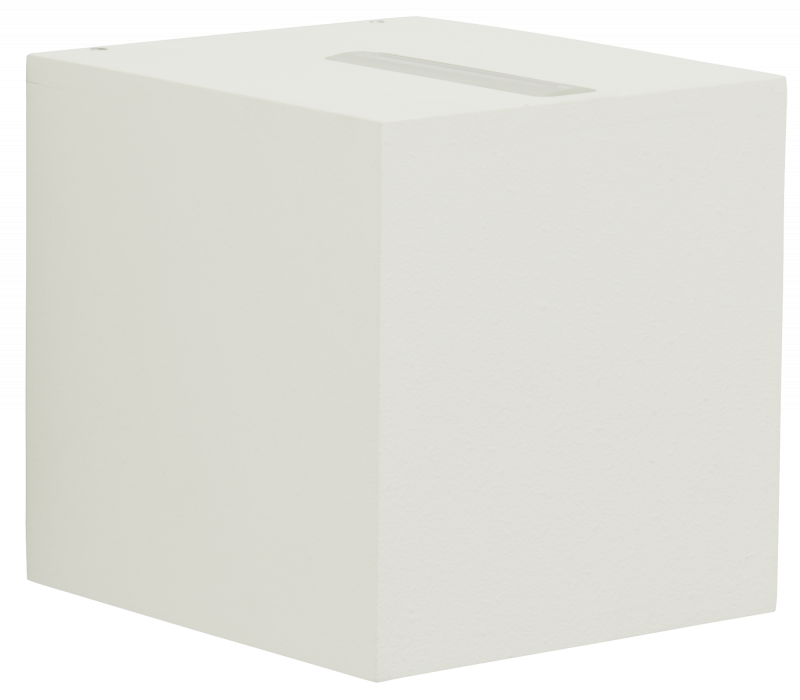

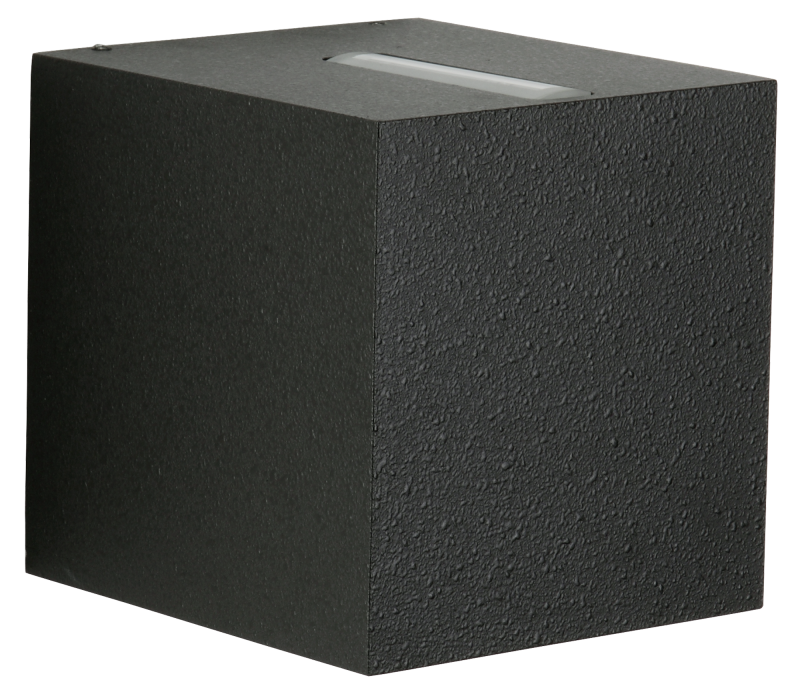

Wall floodlight
type ..2416
€380,40 – €437,60
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
6.7 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
| Weight | N/A |
|---|---|
| Suitable for surface mounting | Yes |
| Voltage type | AC/DC |
| Suitable for pedestal/floor mounting | Yes |
| With control gear | Yes |
| Suitable for number of lamps | 2 |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Adjustability | Not adjustable |
| Surface protection | Lacquered |
| Dimming phase cut-off | Yes |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| Protection class | I |

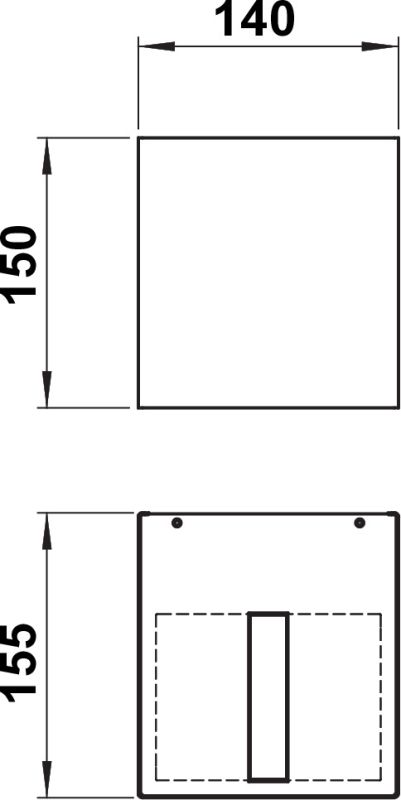

| Length | 155 mm |
| Light sharing | Symmetric |
| Beam angle | Medium beam 21-40° |
| Degree of protection (IP) | IP44 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| No dim function | Yes |
| Height/depth | 150 mm |
| Colour rendering index CRI | 80-89 |
| Max. system power | 13.4 W |
| Light output | Direct/indirect |
| Luminous flux | 1200 lm |
| Width | 140 mm |
| Colour of light | White |
| Light distributor | Focal lens |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Connection type | Screwed terminal |
| Flickering value Pst LM | 1 |
| Power factor | 0.9 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Shape | Eckig |
| Light output | 2-seitig |
| Height | < 700 mm |
| Suitable for wall mounting | Yes |
| Exchangeable control gear | Yes |
| Type of wiring | Ending |
| Beam angle adjustable | Continuously variable |
| Stroboscope effect value SVM | 0.4 |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Unified Glare Ratio (UGR) | 1 |
| Style | Landhaus |
