Data sheet
Article number
Select a color, please

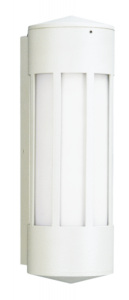

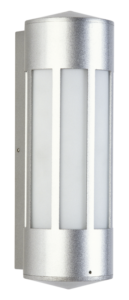

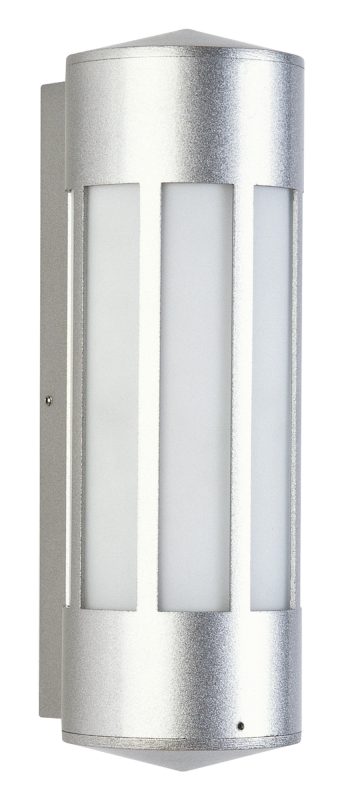

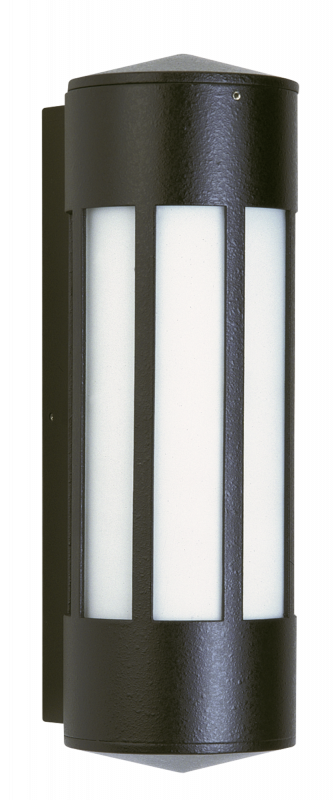

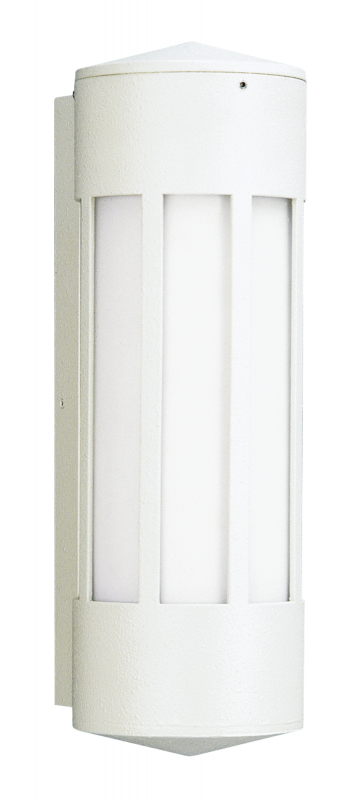

Wall lamp
type ..0240
€253,60 – €291,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Nominal voltage | 230 V |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for surface mounting | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Voltage type | AC |
| Light sharing | Symmetric |
| Power factor | 1 |
| Suitable for number of lamps | 1 |
| No dim function | Yes |
| Protection class | I |
| Dimming depending on control gear | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Type of control gear | Not required |
| Beam angle | Open beam/diffuse |
| Light output | Direct |

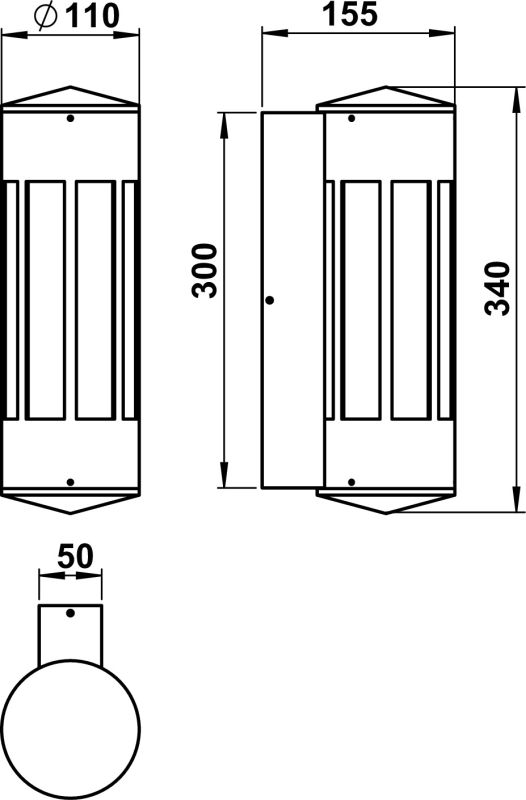

| Height/depth | 340 mm |
| Degree of protection (IP) | IP44 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Length | 155 mm |
| Type of wiring | Ending |
| Max. system power | 75 W |
| Connection type | Screwed terminal |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Light output | 1-seitig |
| Outer diameter | 110 mm |
| Height | < 700 mm |
| Unified Glare Ratio (UGR) | 1 |
| Conductor cross section | 2.5 mm² |
| Style | Modern |
| Surface protection housing | Lacquered |
| Number of poles | 3 |
| Photobiological safety according to EN 62471 | RG1 |
| Shape | Eckig |
Documents and files
Data sheet
Related products
-
Bollard light type ..2019excl. VAT
-

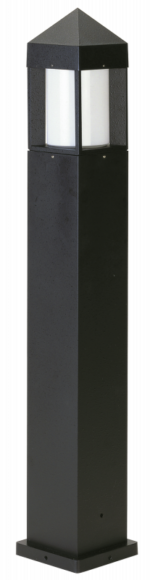

Bollard light type ..2241excl. VAT
-
