Data sheet
Article number
Select a color, please

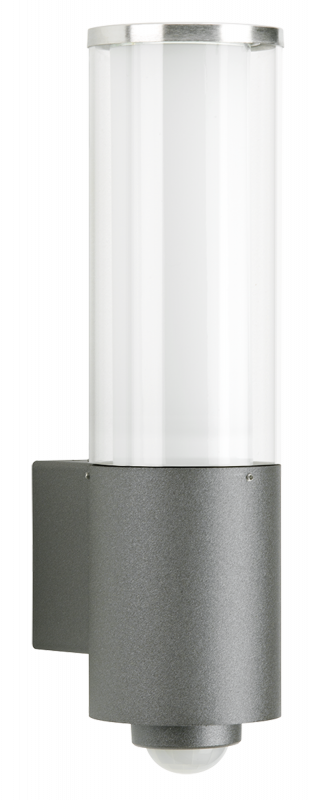

Wall lamp
type ..0320
€270,00 – €310,10
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium, Stainless steel
Colour housing

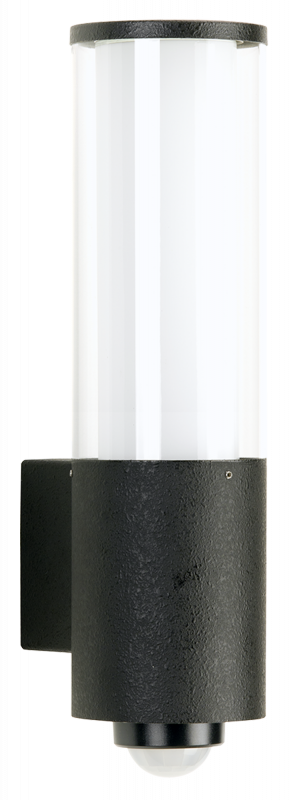

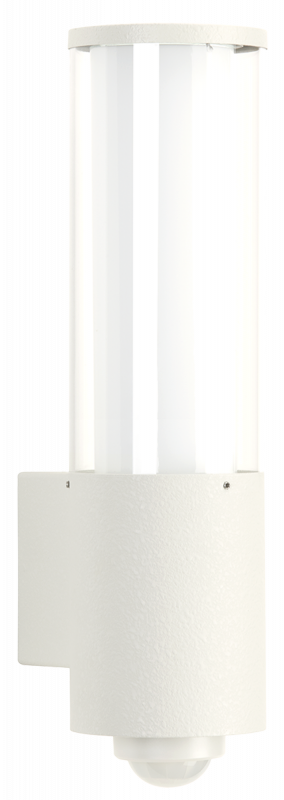

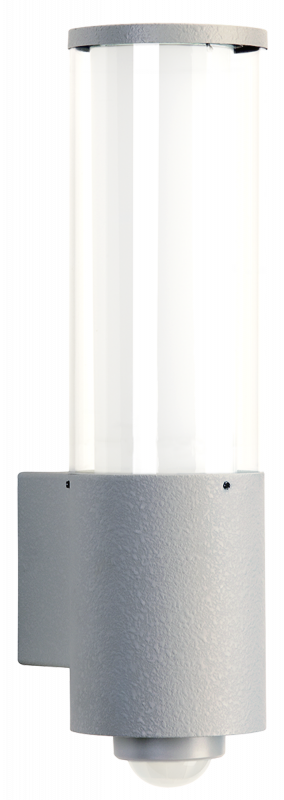

Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Plastic, opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Nominal voltage | 230 V |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| No dim function | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Max. system power | 20 W |
| Voltage type | AC |
| Type of control gear | Not required |
| Suitable for number of lamps | 1 |
| Conductor cross section | 2.5 mm² |
| Power factor | 1 |
| Suitable for surface mounting | Yes |
| Height/depth | 390 mm |
| Mounting Type | Wand |
| Style | Bicolor, Edelstahl, Modern |
| Number of poles | 3 |
| Protection class | I |
| Dimming depending on control gear | Yes |
| Surface protection housing | Lacquered, Untreated |
| Height | < 700 mm |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| Connection type | Screwed terminal |
| Light type | Wandleuchte |
| Outer diameter | 100 mm |
| Light sharing | Symmetric |
| Length | 145 mm |
| Coverage | 360 ° |
| Type of wiring | Ending |
| Unified Glare Ratio (UGR) | 1 |
| Light output | 1-seitig |
| Photobiological safety according to EN 62471 | RG1 |
| Shape | Eckig |
