Data sheet
Article number Select a color, please

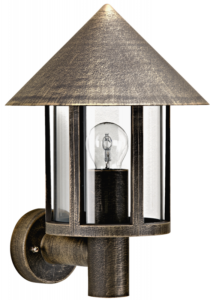

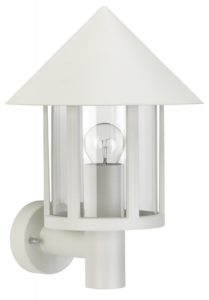

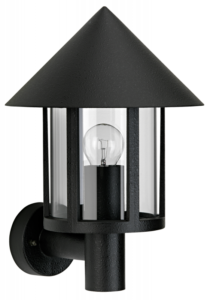

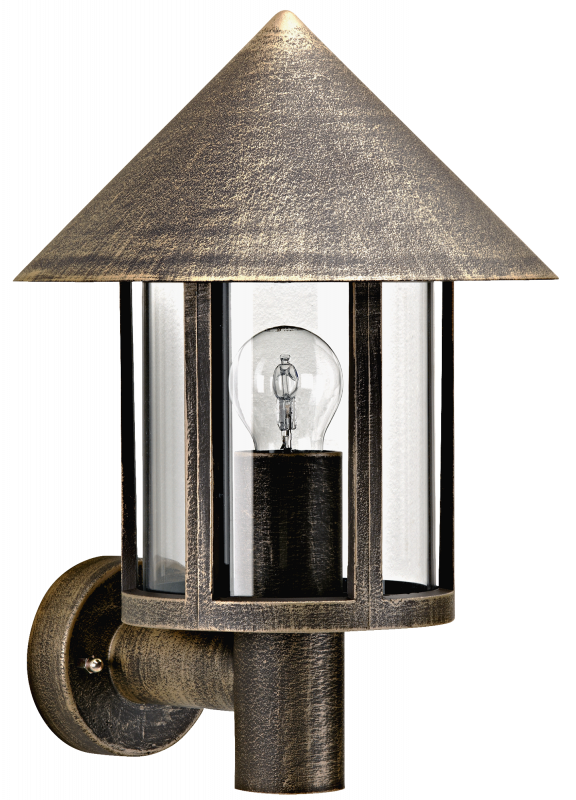

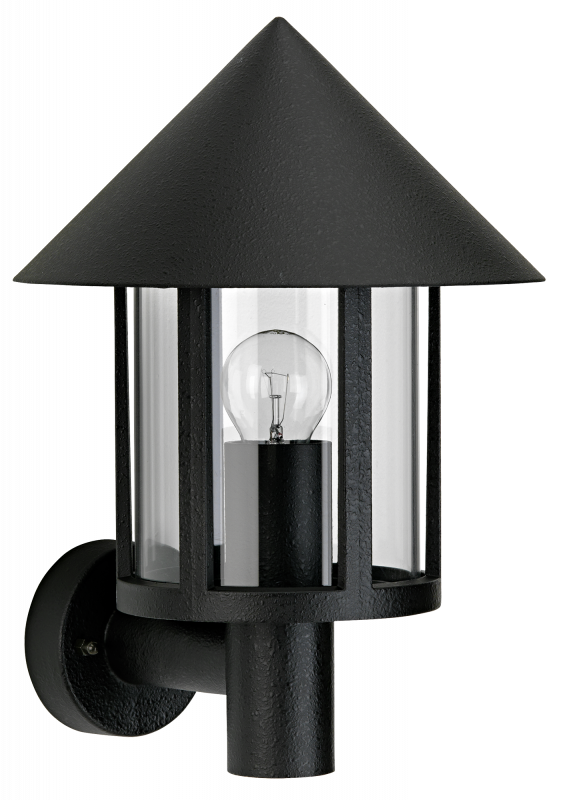

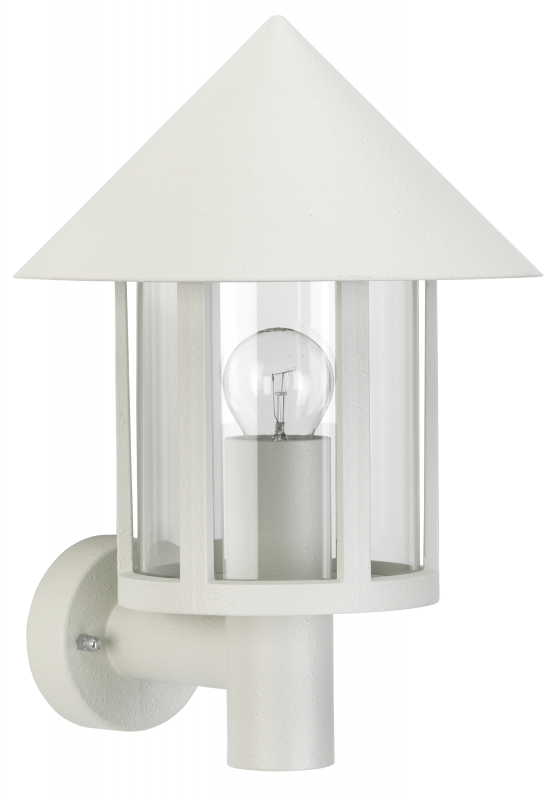

Wall lamp

type ..1824

€178,00

Manufacturer's Suggested Retail Price excl. VAT

Find Retailer

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Suitable for wall mounting

Yes
Max. system power

75 W
Voltage type

AC
Type of control gear

Not required
Nominal voltage

230 V
Suitable for number of lamps

1
Height/depth

370 mm
Dimming phase cut-off

Yes
Dimming phase cut-on

Yes
Light output

Direct
Suitable for surface mounting

Yes
Conductor cross section

2.5 mm²
Type of wiring

Ending
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Dimming manufacturer's proprietary system

Yes
Outer diameter

260 mm
Protection class

I
Length

270 mm
Mounting Type

Wand
Light type

Wandleuchte
Light output

1-seitig
Number of poles

3
Connection type

Screwed terminal
Power factor

1
No dim function

Yes
Light sharing

Symmetric
Beam angle

Open beam/diffuse
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Dimming depending on control gear

Yes
Degree of protection (IP)

IP44
Unified Glare Ratio (UGR)

1
Height

< 700 mm
Surface protection housing

Lacquered
Photobiological safety according to EN 62471

RG1
Style

Landhaus
Shape

Eckig
Documents and files
Data sheet
Assembly instruction
PDF | 36 KB
download

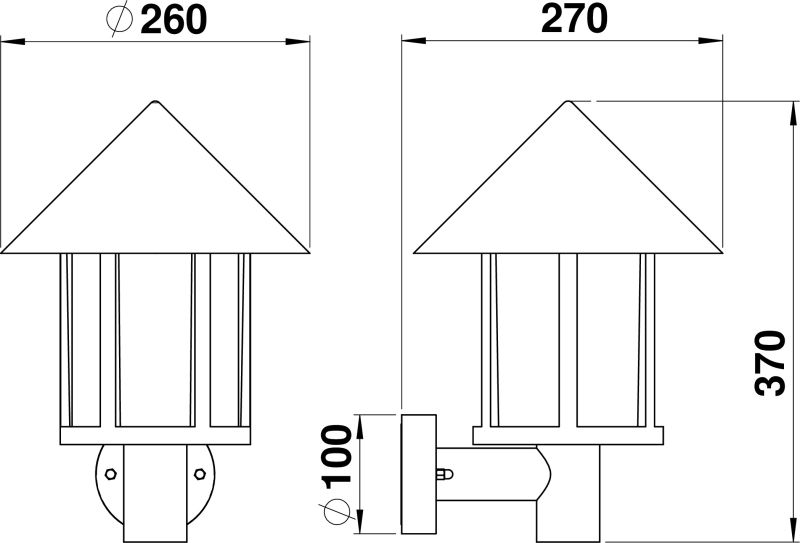

Dimensioned drawing
PDF | 20 KB
download
Light distribution curve - Eulumdat/LDT
LDT | 848 B
download
Offertext
For: 651824
TXT | 208 B
download
Offertext
For: 661824
TXT | 225 B
download
Offertext
For: 681824
TXT | 225 B
download
Full catalog 21 / 22
PDF | 39 MB
download
Spare parts
10260373 - G-373, acrylic tube clear 209 mm show
Accessories
651005 - Corner bracket round type ..1005, Brown-Brass
Für: 651824
show
661005 - Corner bracket round type ..1005, Black
Für: 661824
show
681005 - Corner bracket round type ..1005, White
Für: 681824
show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
