Data sheet
Article number
Select a color, please
Wall lamp
type ..1825
€245,60
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Dimming depending on control gear | Yes |
| Suitable for surface mounting | Yes |
| Light output | Direct |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Voltage type | AC |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 1 |
| Type of wiring | Ending |

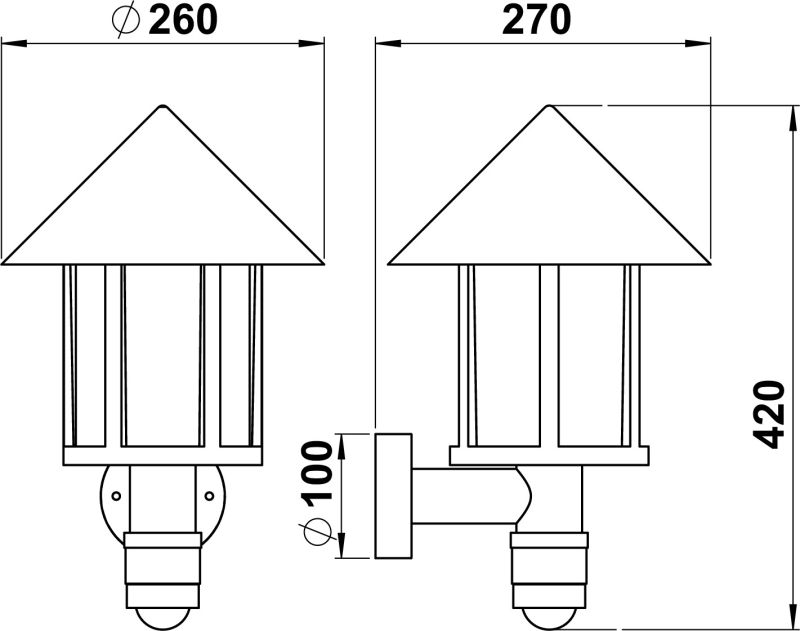

| Length | 270 mm |
| Max. system power | 75 W |
| Dimming manufacturer's proprietary system | Yes |
| Outer diameter | 260 mm |
| Dimming phase cut-on | Yes |
| Height/depth | 420 mm |
| Light output | 1-seitig |
| Mounting Type | Wand |
| No dim function | Yes |
| Light sharing | Symmetric |
| Light type | Wandleuchte |
| Unified Glare Ratio (UGR) | 1 |
| Degree of protection (IP) | IP44 |
| Connection type | Screwed terminal |
| Coverage | 360 ° |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Height | < 700 mm |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Protection class | I |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Photobiological safety according to EN 62471 | RG1 |
| Surface protection housing | Lacquered |
| Style | Landhaus |
| Shape | Eckig |
Documents and files
Data sheet
Spare parts
| 10260373 - G-373, acrylic tube clear 209 mm | show |
