Article number Select a color, please

Wall lamp

type ..1836

249,80

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
Weight N/A
Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Type of control gear

Not required

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for surface mounting

Yes

Dimming phase cut-on

Yes

Suitable for number of lamps

1

Voltage type

AC

Nominal voltage

230 V

Dimming phase cut-off

Yes

Type of wiring

Ending

Protection class

I

Dimming manufacturer's proprietary system

Yes

Light sharing

Symmetric

No dim function

Yes

Height/depth

350 mm

Length

295 mm

Number of poles

3

Outer diameter

200 mm

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Width

200 mm

Power factor

1

Beam angle

Open beam/diffuse

Light output

Direct

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Coverage

360 °

Max. system power

75 W

Dimming depending on control gear

Yes

Light type

Wandleuchte

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Mounting Type

Wand

Unified Glare Ratio (UGR)

1

Photobiological safety according to EN 62471

RG1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 50 KB

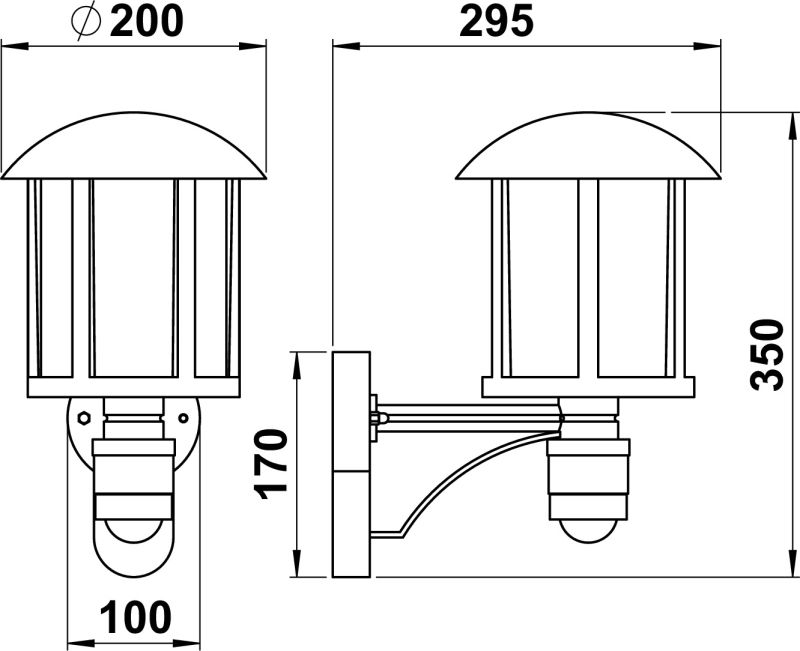

Dimensioned drawing
PDF | 65 KB
Instruction manual
PDF | 210 KB
Light distribution curve - Eulumdat/LDT
LDT | 847 B
Offertext
For: 601836
TXT | 275 B
Offertext
For: 651836
TXT | 275 B
Offertext
For: 671836
TXT | 275 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260368 - G-368, acrylic tube clear 181mm show
Accessories
601006 - Corner bracket angular type ..1006, Black-Silver
Für: 601836
show
651006 - Corner bracket angular type ..1006, Brown-Brass
Für: 651836
show
671006 - Corner bracket angular type ..1006, White-Gold
Für: 671836
show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
