Data sheet
Article number
Select a color, please

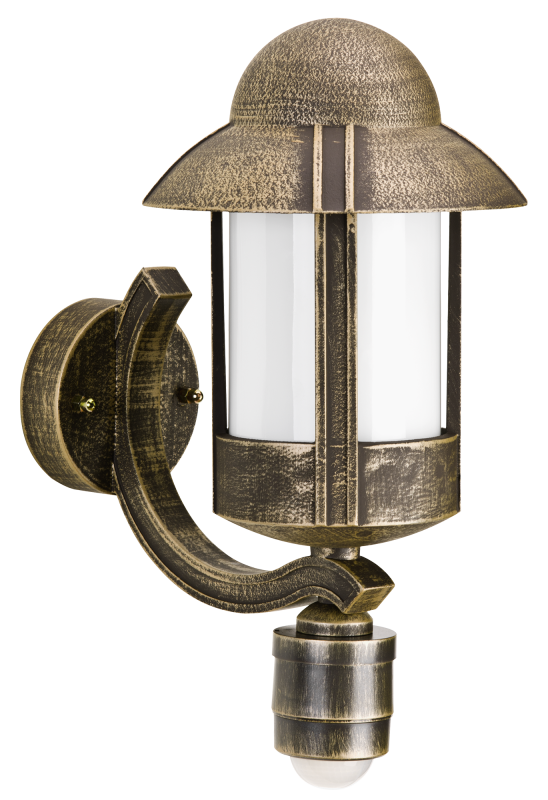

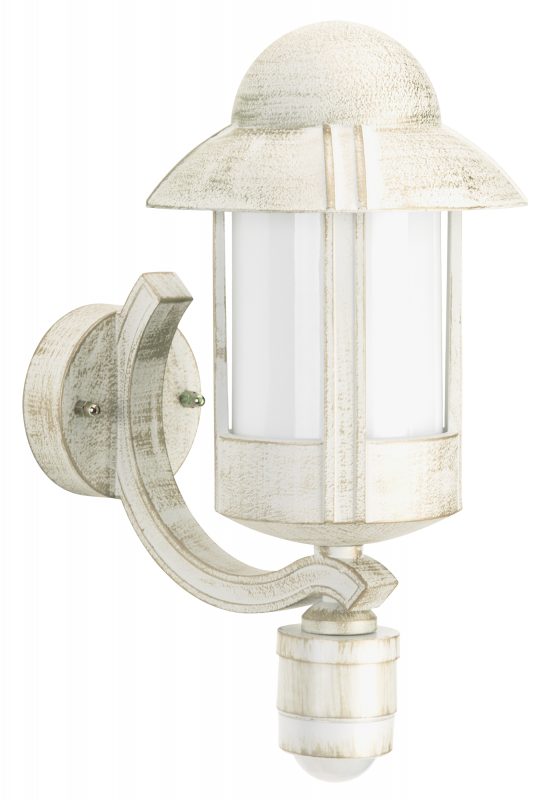

Wall lamp
type ..1842
€379,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Type of wiring | Ending |
| Suitable for surface mounting | Yes |
| Power factor | 1 |
| Type of control gear | Not required |
| Dimming phase cut-on | Yes |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Dimming phase cut-off | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Protection class | I |
| Suitable for wall mounting | Yes |
| Light sharing | Symmetric |

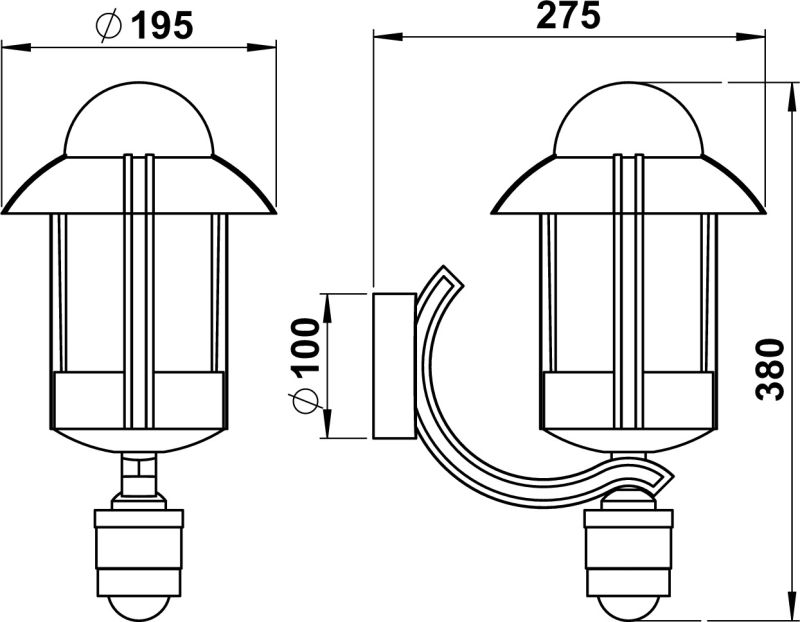

| Outer diameter | 195 mm |
| No dim function | Yes |
| Number of poles | 3 |
| Width | 195 mm |
| Height/depth | 380 mm |
| Dimming manufacturer's proprietary system | Yes |
| Length | 275 mm |
| Degree of protection (IP) | IP44 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Light type | Wandleuchte |
| Light output | Direct |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Coverage | 360 ° |
| Max. system power | 75 W |
| Dimming depending on control gear | Yes |
| Beam angle | Open beam/diffuse |
| Light output | 1-seitig |
| Height | < 700 mm |
| Surface protection housing | Lacquered |
| Mounting Type | Wand |
| Unified Glare Ratio (UGR) | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Style | Landhaus |
| Shape | Eckig |
Documents and files
Data sheet
Spare parts
| 90210258 - G 258, glass opal glossy Thread 84,5 mm | show |
