Data sheet
Article number
Select a color, please
Wall lamp
type ..1855
€265,60 – €305,50
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 54 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |

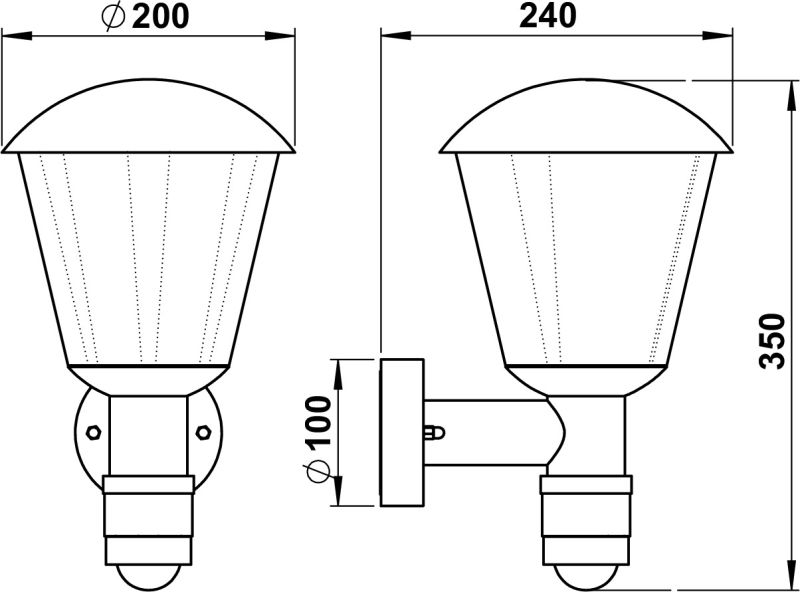

| Length | 240 mm |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Type of control gear | Not required |
| Dimming manufacturer's proprietary system | Yes |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Nominal voltage | 230 V |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Voltage type | AC |
| Max. system power | 75 W |
| Outer diameter | 200 mm |
| Mounting Type | Wand |
| Protection class | I |
| Number of poles | 3 |
| Degree of protection (IP) | IP54 |
| Connection type | Screwed terminal |
| Coverage | 360 ° |
| Light output | Direct |
| Height/depth | 350 mm |
| Power factor | 1 |
| No dim function | Yes |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Unified Glare Ratio (UGR) | 1 |
| Impact strength | IK08 |
| Dimming depending on control gear | Yes |
| Type of wiring | Ending |
| Light output | 1-seitig |
| Height | < 700 mm |
| Style | Edelstahl, Modern |
| Surface protection housing | Lacquered |
| Light type | Wandleuchte |
| Photobiological safety according to EN 62471 | RG1 |
| Shape | Eckig |
Documents and files
Data sheet
Spare parts
| 10260141 - G 141, lamp glasses L-750 | show |
Accessories
|
621005 - Corner bracket round type ..1005, Anthracite
Für: 621855
|
show |
|
661005 - Corner bracket round type ..1005, Black
Für: 661855
|
show |
|
681005 - Corner bracket round type ..1005, White
Für: 681855
|
show |
|
691005 - Corner bracket round type ..1005, Stainless steel
Für: 691855
|
show |
| 90750100 - LED Retrofit Classic | show |
| 90750102 - LED Retrofit Filament | show |
