Data sheet
Article number 696060
Wall lamp
type ..6060
€211,00
Manufacturer's Suggested Retail Price excl. 19% VAT
Specifications

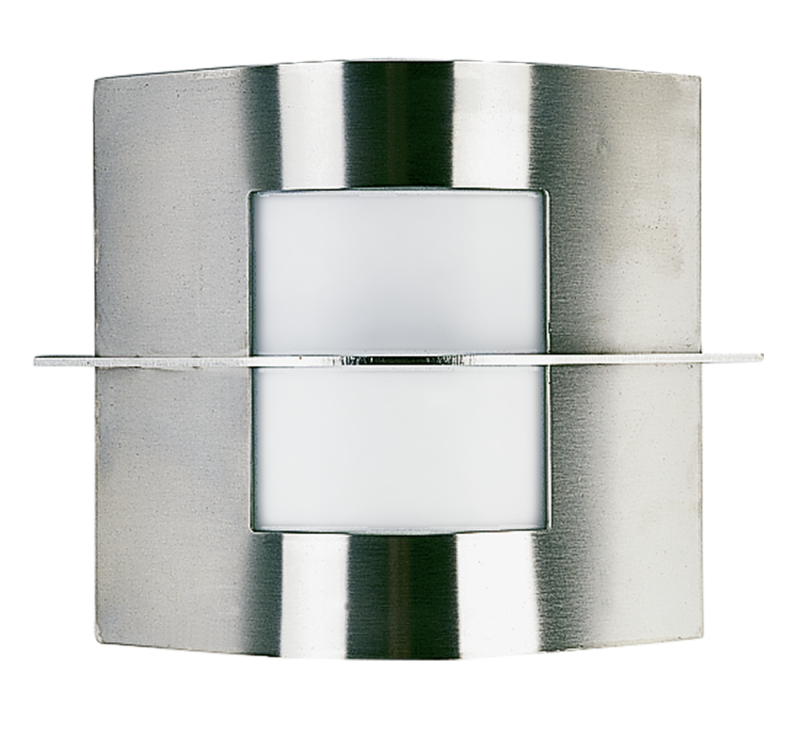

Wall lamp type no. 6060
Stainless steel, for 1 x lamp, E27
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | 3,40 kg |
|---|---|
| Type of control gear | Not required |
| Protection class | I |
| Dimming manufacturer's proprietary system | Yes |
| Suitable for number of lamps | 1 |
| Light sharing | Symmetric |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for surface mounting | Yes |
| Light output | 1-seitig |

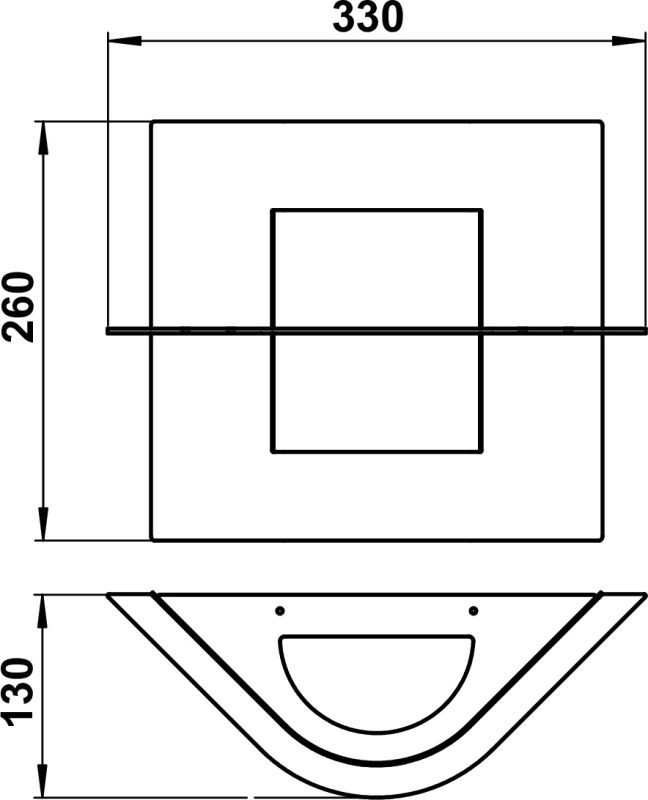

| Width | 330 mm |
| Power factor | 1 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Degree of protection (IP) | IP44 |
| Height/depth | 260 mm |
| Dimming depending on control gear | Yes |
| Light type | Wandleuchte |
| Max. system power | 75 W |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
| No dim function | Yes |
| Length | 130 mm |
| Type of wiring | Ending |
| Suitable for wall mounting | Yes |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Mounting Type | Wand |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Height | < 700 mm |
| Surface protection housing | Untreated |
| Style | Edelstahl, Modern |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Number of poles | 3 |
| Shape | Eckig |
