Data sheet

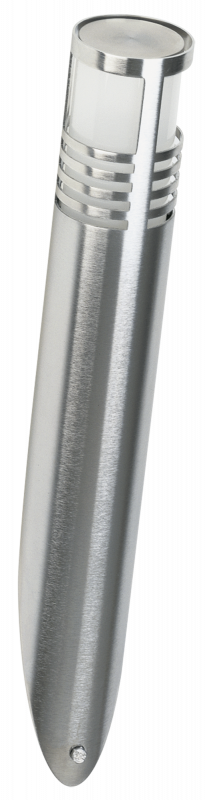

Wall light Stainless steel Product Image Article 690204

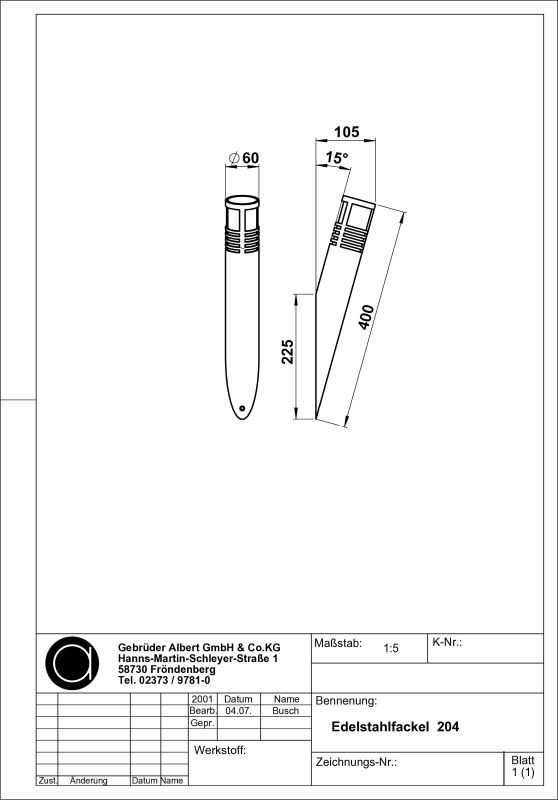

Wall light Stainless steel Dimensioned drawing Article 690204
Wall light Stainless steel Product Image Article 690204
Wall light Stainless steel Dimensioned drawing Article 690204
Article number 690204

Wall light

type ..0204

€215,70

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert wall lamp 690204
made of stainless steel, with borosilicate glass and mounting plate made of cast aluminium. Equipped for 1 mains voltage halogen lamp QT 14 40 Watt, socket G9.protection class IP 44 – protection class : d 60 x 400 x 110 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
1 - 40 W
Material cover
Glass structured
Documents and files
Assembly instruction
download PDF 29.71 KB
Dimensioned drawing
download PDF 85.19 KB
Full catalog 21 / 22
download PDF 38.74 MB
Spare parts
90210294 - G 294, glass tube borosilicate show
Accessories
90750103 - LED Pin show

Additional information

Weight 1,00 kg
Type of control gear

Not required
Material cover

Glass structured
Suitable for lamp power

1 – 40 W
Dimming phase cut-on

Yes
Voltage type

AC
Dimming depending on control gear

Yes
Material housing

Stainless steel
Light sharing

Symmetric
Nominal voltage

230 V
Colour housing

Stainless steel
No dim function

Yes
Suitable for number of lamps

1
Lamp holder

G9
Dimming phase cut-off

Yes
Suitable for surface mounting

Yes
Lamp type

HV halogen lamp
Height/depth

400 mm
Degree of protection (IP)

IP44
Protection class

I
Rated ambient temperature according to IEC62722-2-1

15 – 25 °C
Light type

Wandleuchte
Light output

1-seitig
Height

< 700 mm
Type of wiring

Ending
Unified Glare Ratio (UGR)

1
Surface protection housing

Untreated
Number of poles

3
Light output

Direct
Suitable for wall mounting

Yes
Mounting Type

Wand
Max. system power

40 W
Beam angle

Open beam/diffuse
Power factor

1
Connection type

Screwed terminal
Conductor cross section

2.5 mm²
Style

Edelstahl, Modern
Highest energy efficiency class of the exchangeable lamp

A++
Lowest energy efficiency class of the exchangeable lamp

E
Outer diameter

60 mm
Photobiological safety according to EN 62471

RG1
Shape

Eckig
