Data sheet
Article number
Select a color, please

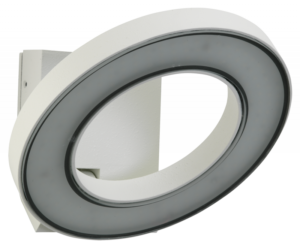

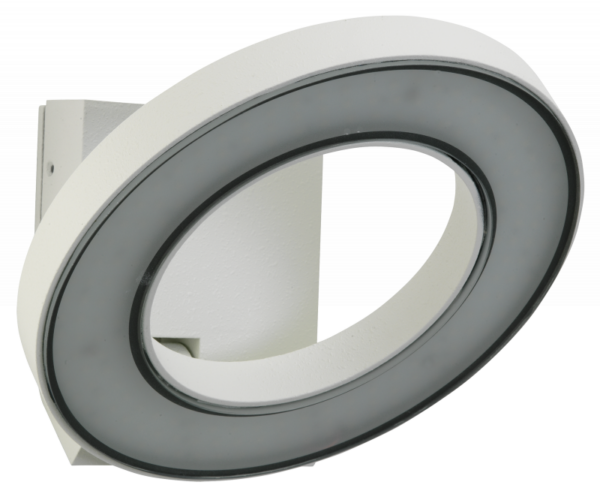

Wall light
type ..0210
€572,80 – €658,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing

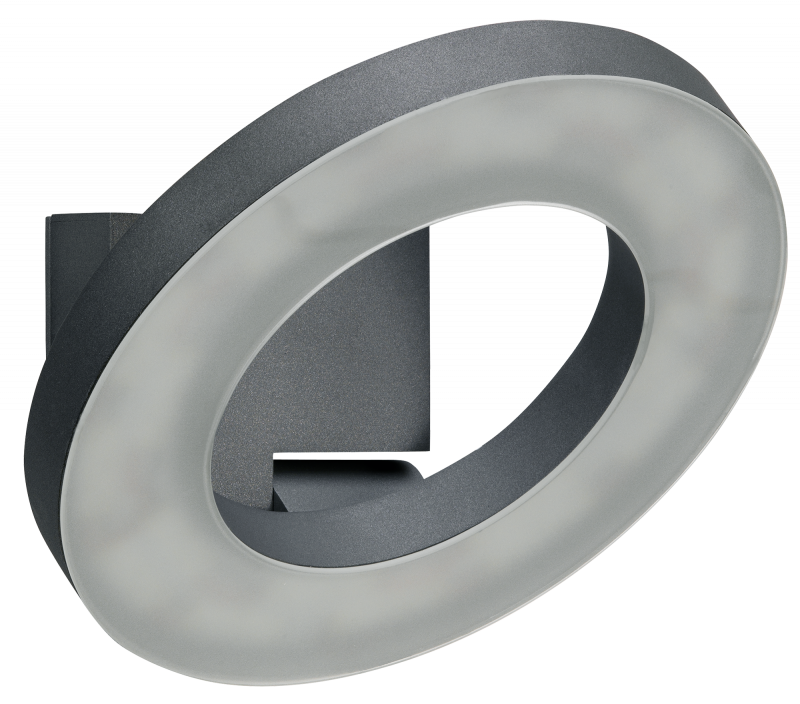

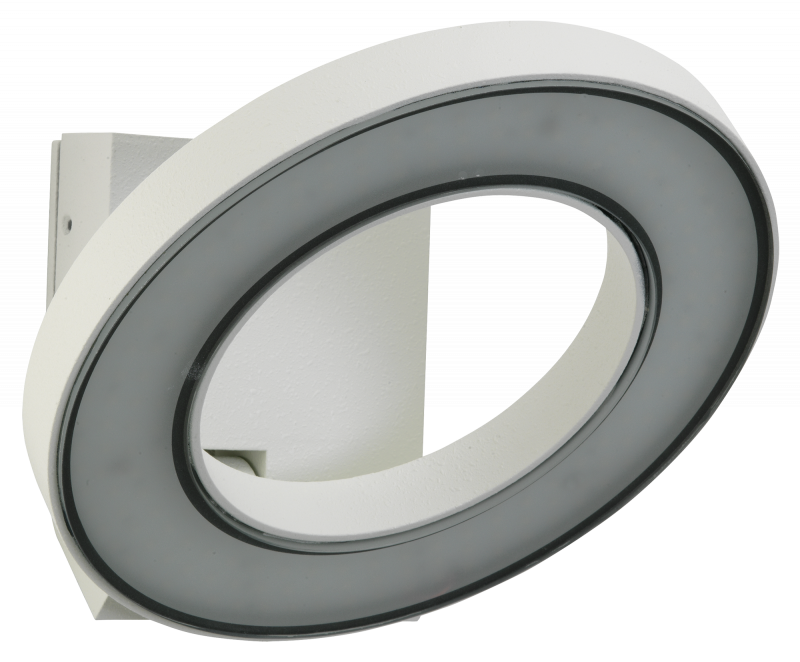

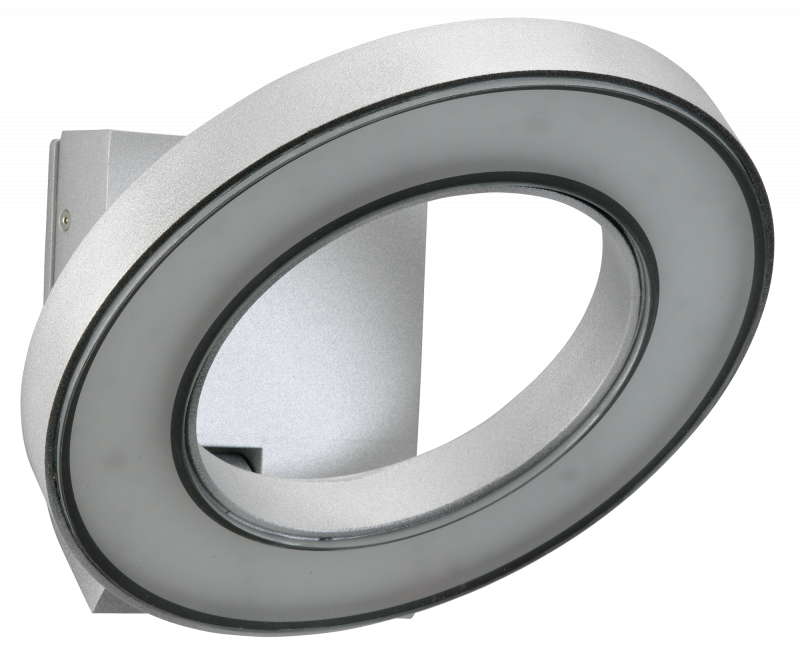

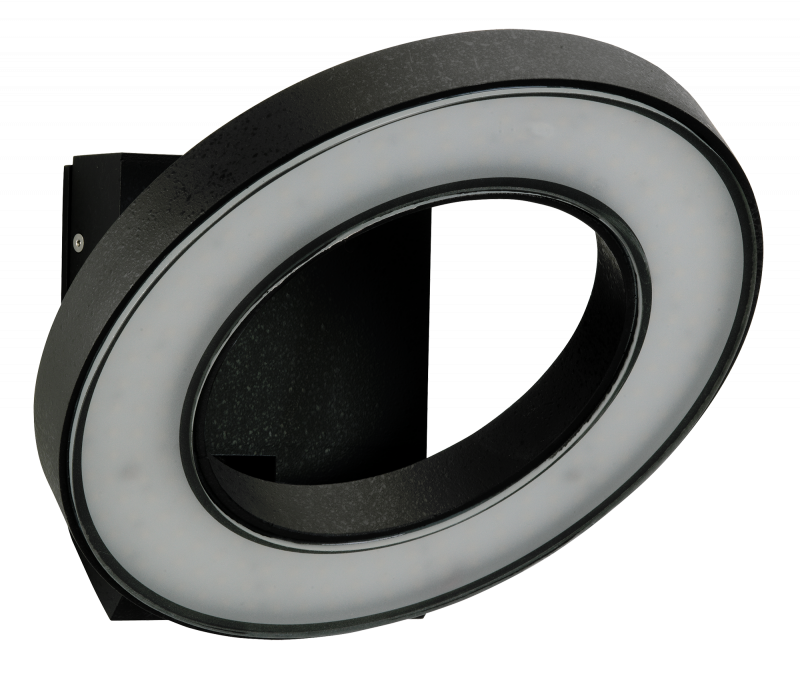

Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
16 W
Rated luminous flux according to IEC 62722-2-1
1600 lm
Colour temperature
3000 K
Material cover
Glass structured
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| With control gear | Yes |
| Suitable for surface mounting | Yes |
| Type of control gear | LED operating device voltage-controlled |
| Dimming depending on control gear | Yes |
| Colour of light | White |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.9 |

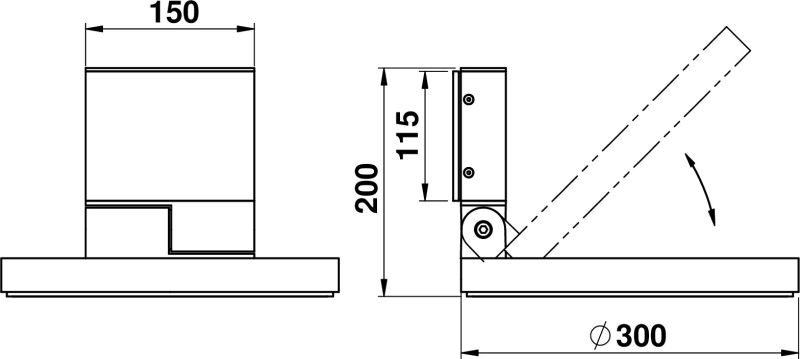

| Length | 200 mm |
| Outer diameter | 300 mm |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Surface protection housing | Lacquered |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Flickering value Pst LM | 1 |
| Light type | Wandleuchte |
| Light sharing | Symmetric |
| No dim function | Yes |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP54 |
| Photobiological safety according to EN 62471 | RG1 |
| Exchangeable control gear | Yes |
| Max. system power | 16 W |
| Connection type | Screwed terminal |
| Protection class | I |
| Light output | 1-seitig |
| Mounting Type | Wand |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Stroboscope effect value SVM | 0.4 |
| Unified Glare Ratio (UGR) | 1 |
| Beam angle adjustable | Continuously variable |
| Shape | Eckig |
Documents and files
Data sheet
Spare parts
| 90220440 - G 440, ESG glass ring | show |
