Article number Select a color, please

Wall light

type ..0221

283,20325,80

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Voltage type

AC

Suitable for number of lamps

1

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Type of control gear

Not required

Width

110 mm

Dimming manufacturer's proprietary system

Yes

Length

180 mm

Dimming phase cut-on

Yes

Nominal voltage

230 V

Dimming depending on control gear

Yes

Connection type

Screwed terminal

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Dimming phase cut-off

Yes

Suitable for surface mounting

Yes

Conductor cross section

2.5 mm²

Max. system power

20 W

Power factor

1

Outer diameter

110 mm

Height/depth

440 mm

Highest energy efficiency class of the exchangeable lamp

A++

Number of poles

3

No dim function

Yes

Coverage

360 °

Type of wiring

Ending

Light output

1-seitig

Light type

Wandleuchte

Mounting Type

Wand

Protection class

I

Unified Glare Ratio (UGR)

1

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Height

< 700 mm

Surface protection housing

Lacquered

Style

Modern

Photobiological safety according to EN 62471

RG1

Light output

Direct

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 31 KB

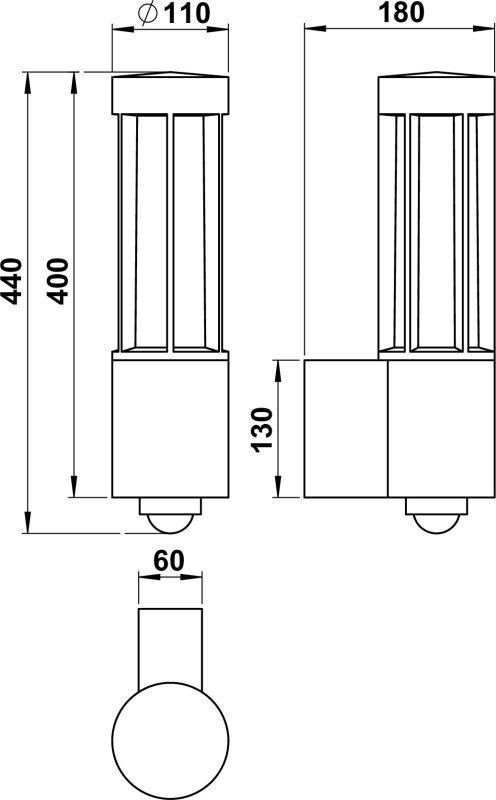

Dimensioned drawing
PDF | 106 KB
Instruction manual
PDF | 210 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 660221
TXT | 264 B
Offertext
For: 680221
TXT | 264 B
Offertext
For: 690221
TXT | 242 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210309 - G 309, opal glass glossy Thread 67 mm show
Accessories
661006 - Corner bracket angular type ..1006, Black
Für: 660221
show
681006 - Corner bracket angular type ..1006, White
Für: 680221
show
691006 - Corner bracket angular type ..1006, Stainless steel
Für: 690221
show
90750309 - LED Retrofit Tube show
