Data sheet
Article number
Select a color, please

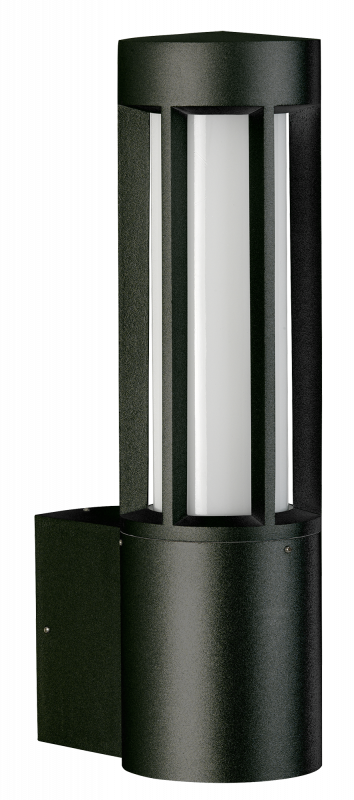

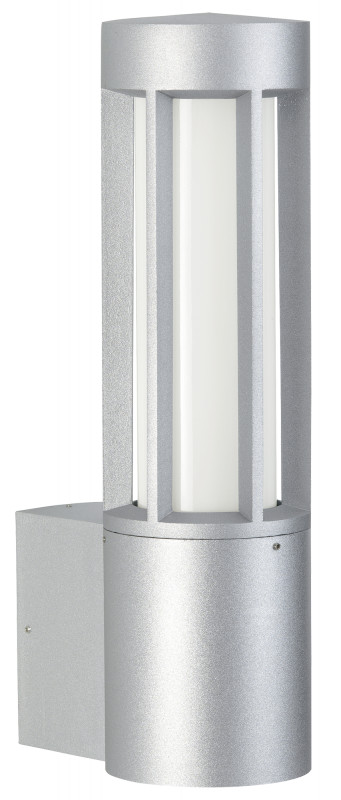

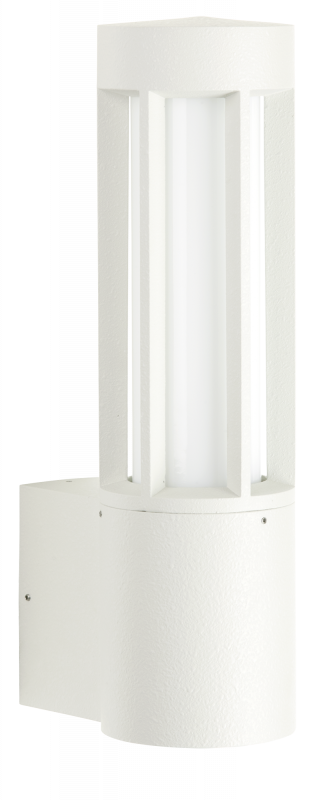

Wall light
type ..0223
€271,60 – €312,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
The reflector lamp is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Conductor cross section | 2.5 mm² |
| Suitable for number of lamps | 2 |
| Number of poles | 3 |
| Dimming phase cut-off | Yes |
| Type of control gear | Not required |
| Type of wiring | Ending |
| Suitable for surface mounting | Yes |
| Voltage type | AC |
| Dimming phase cut-on | Yes |
| Power factor | 1 |
| Light type | Wandleuchte |
| Max. system power | 20 W |

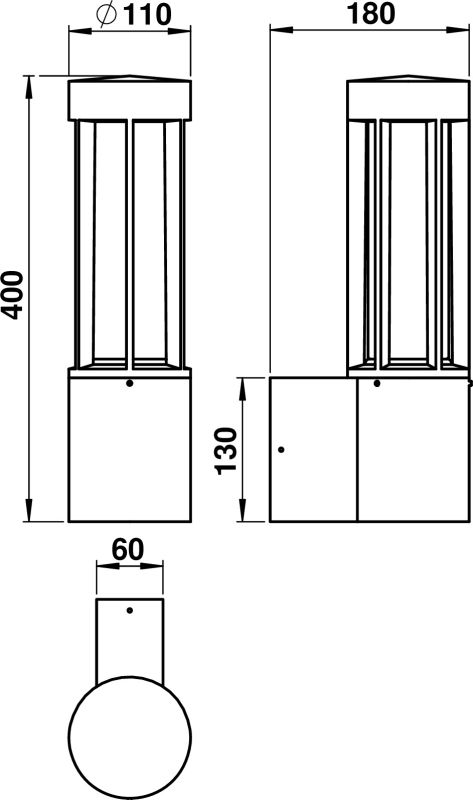

| Height/depth | 400 mm |
| Length | 180 mm |
| Nominal voltage | 230 V |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Light sharing | Symmetric |
| Photobiological safety according to EN 62471 | RG1 |
| Height | < 700 mm |
| Dimming depending on control gear | Yes |
| Connection type | Screwed terminal |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| Protection class | I |
| Mounting Type | Wand |
| Light output | 1-seitig |
| Style | Modern |
| Surface protection housing | Lacquered |
| No dim function | Yes |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
Documents and files
Data sheet
Spare parts
| 90210309 - G 309, opal glass glossy Thread 67 mm | show |
Accessories
|
661006 - Corner bracket angular type ..1006, Black
Für: 660223
|
show |
|
681006 - Corner bracket angular type ..1006, White
Für: 680223
|
show |
|
691006 - Corner bracket angular type ..1006, Stainless steel
Für: 690223
|
show |
|
90750104 - LED PAR 16 warm to dim
Für: 660223
|
show |
|
90750105 - LED PAR 16
Für: 660223
|
show |
| 90750309 - LED Retrofit Tube | show |
