Article number 690238

Wall light

type ..0238

284,70

Specifications

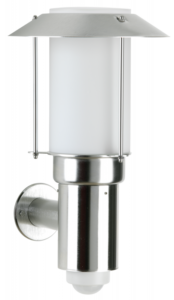

Albert wall lamp 690238 – with integrated motion detector – made of stainless steel with opal glass. Suitable for 1 x incandescent lamp A60 75W, socket E27.protection class IP 44 – protection class : d 210 x 365 x 230 mm

Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 2,30 kg
Dimming phase cut-off

Yes

Dimming manufacturer's proprietary system

Yes

Degree of protection (IP)

IP44

Power factor

1

Light sharing

Symmetric

Height/depth

375 mm

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Length

230 mm

Suitable for surface mounting

Yes

Dimming phase cut-on

Yes

Max. system power

75 W

Suitable for number of lamps

1

Light type

Wandleuchte

Number of poles

3

Dimming depending on control gear

Yes

No dim function

Yes

Surface protection housing

Untreated

Light output

1-seitig

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Connection type

Screwed terminal

Coverage

360 °

Mounting Type

Wand

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Photobiological safety according to EN 62471

RG1

Light output

Direct

Beam angle

Open beam/diffuse

Suitable for wall mounting

Yes

Type of wiring

Ending

Height

< 700 mm

Unified Glare Ratio (UGR)

1

Protection class

I

Style

Edelstahl, Modern

Outer diameter

210 mm

Conductor cross section

2.5 mm²

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 28 KB

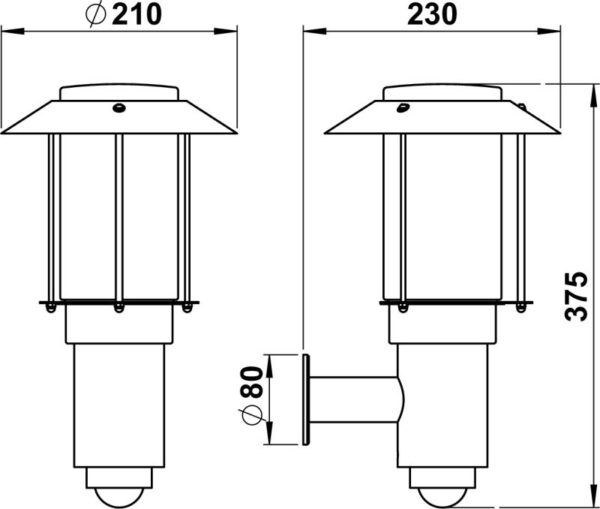

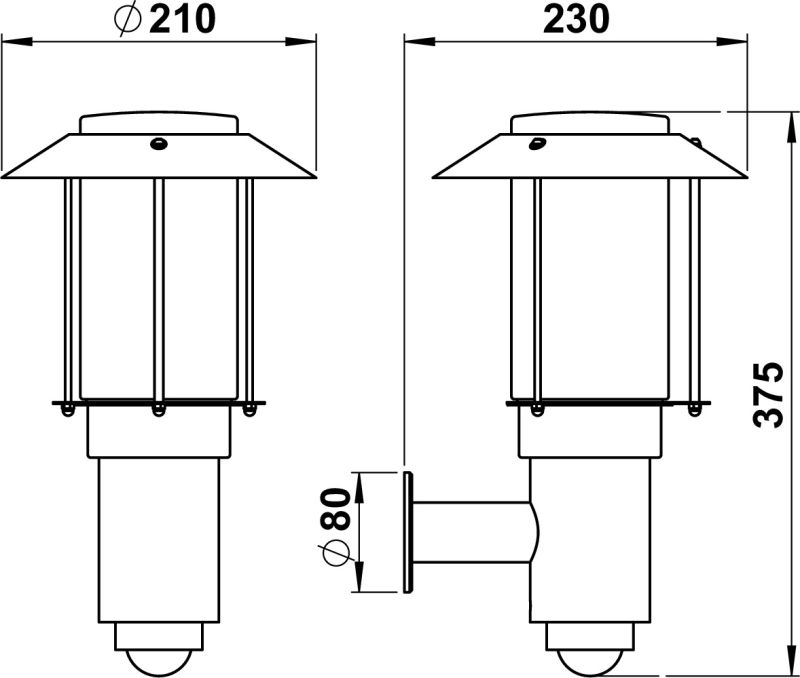

Dimensioned drawing
PDF | 120 KB
Instruction manual
PDF | 210 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210259 - G 259, glass opal matt Thread 84,5 mm -long show
Accessories
691003 - Corner bracket type ..1003 show
90750100 - LED Retrofit Classic show
