Article number Select a color, please

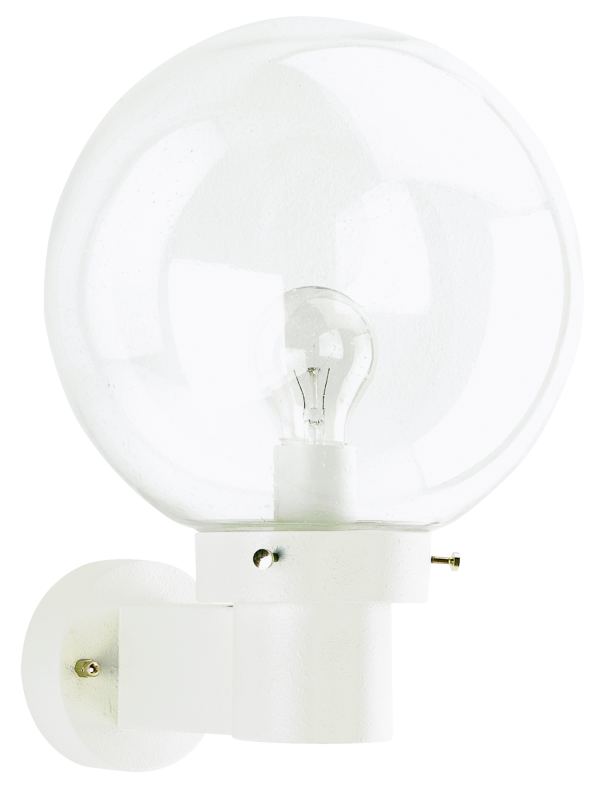

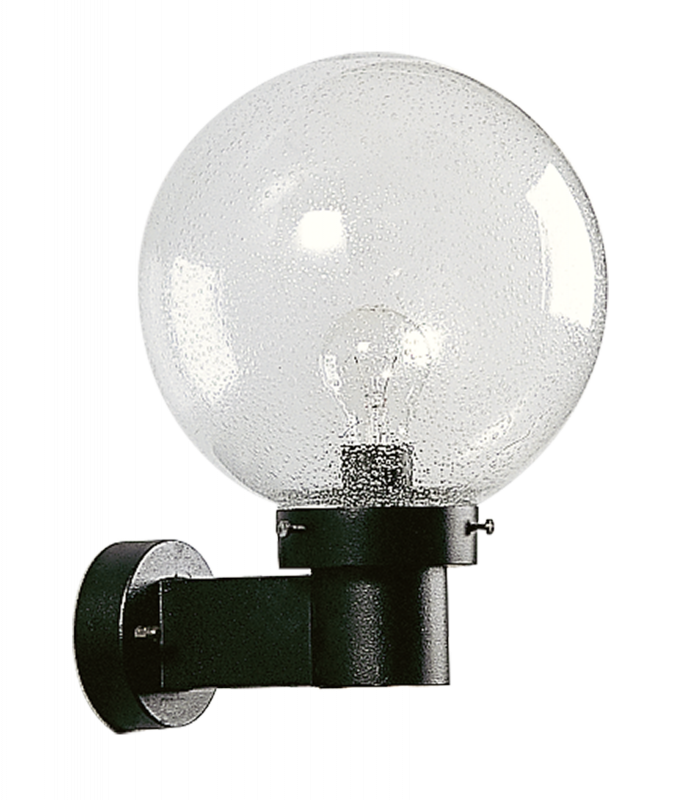

Wall light

type ..0633

169,70

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass structured
Weight N/A
Suitable for wall mounting

Yes

Conductor cross section

2.5 mm²

Dimming manufacturer's proprietary system

Yes

Dimming phase cut-off

Yes

Protection class

I

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Light sharing

Symmetric

Dimming phase cut-on

Yes

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Number of poles

3

Power factor

1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Outer diameter

250 mm

Type of wiring

Ending

Degree of protection (IP)

IP44

Photobiological safety according to EN 62471

RG1

Beam angle

Open beam/diffuse

Light output

Direct

Height/depth

350 mm

Length

285 mm

Mounting Type

Wand

Light type

Wandleuchte

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Max. system power

75 W

Connection type

Screwed terminal

No dim function

Yes

Dimming depending on control gear

Yes

Height

< 700 mm

Surface protection housing

Lacquered

Light output

1-seitig

Unified Glare Ratio (UGR)

1

Shape

Eckig

Style

Modern

Documents and files
Data sheet
Assembly instruction
PDF | 128 KB

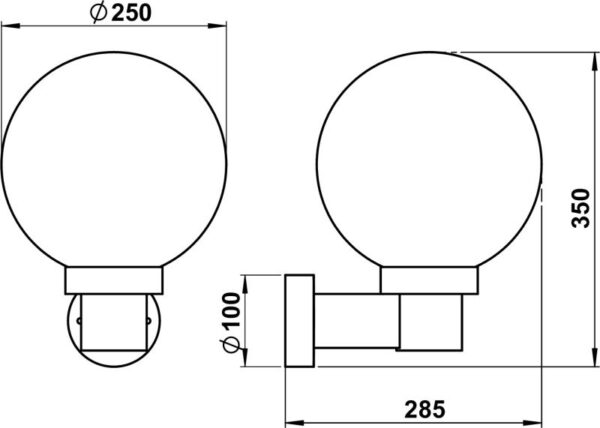

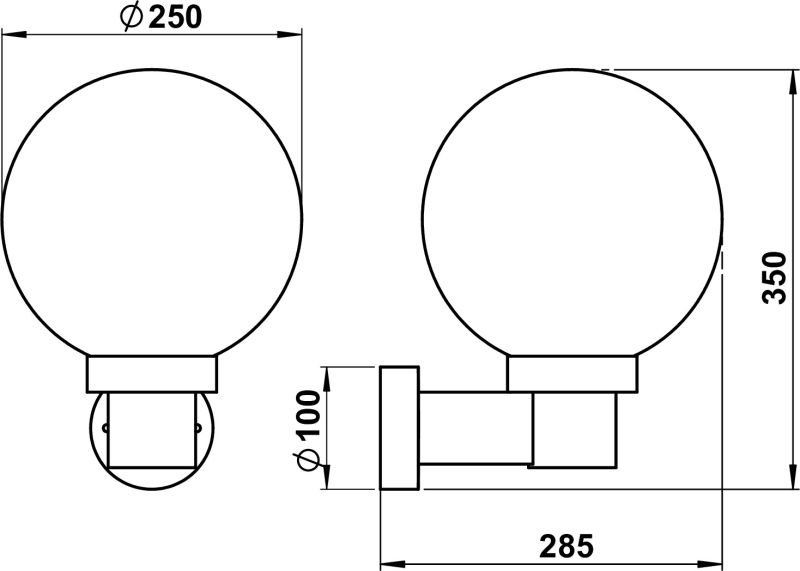

Dimensioned drawing
PDF | 24 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 660633
TXT | 224 B
Offertext
For: 680633
TXT | 224 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210095 - G 95, bubble glass sphere, clear show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 660633
show
681005 - Corner bracket round type ..1005, White
Für: 680633
show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
