Article number Select a color, please

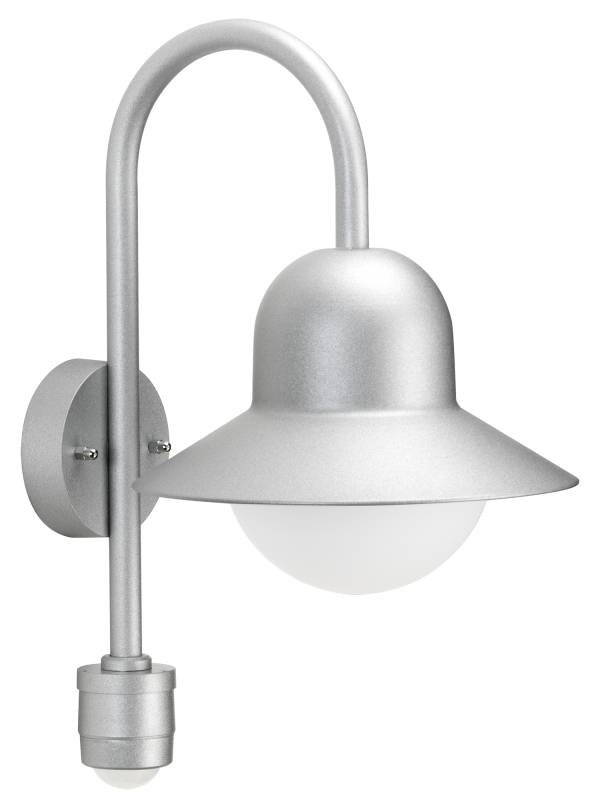

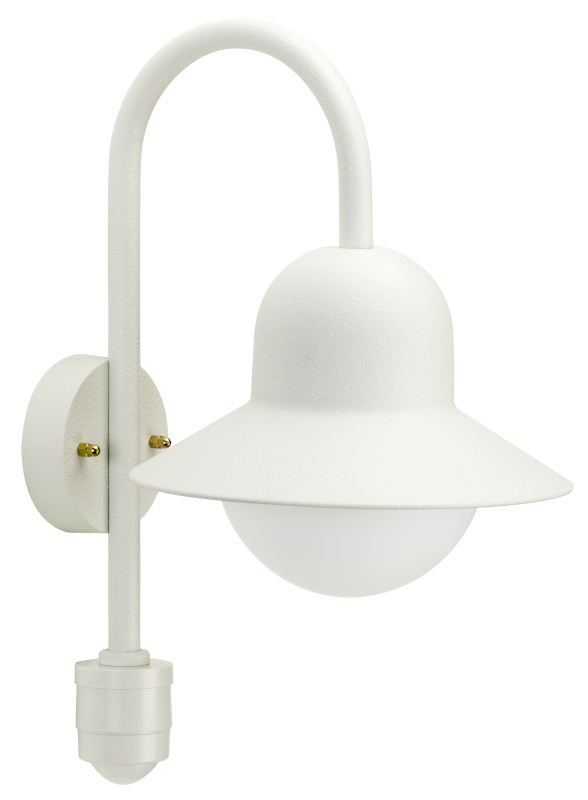

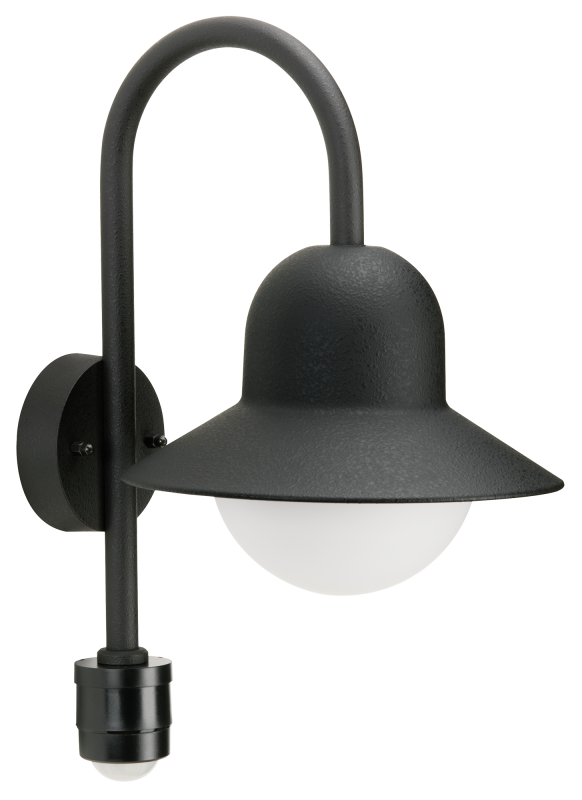

Wall light

type ..0661

229,90264,30

Clear
Features
Motion detector Product-Icon Luminaire with integrated motion detector.
Luminaire with integrated motion detector.
Twilight switch Product-Icon Luminaire with integrated twilight switch.
Luminaire with integrated twilight switch.
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

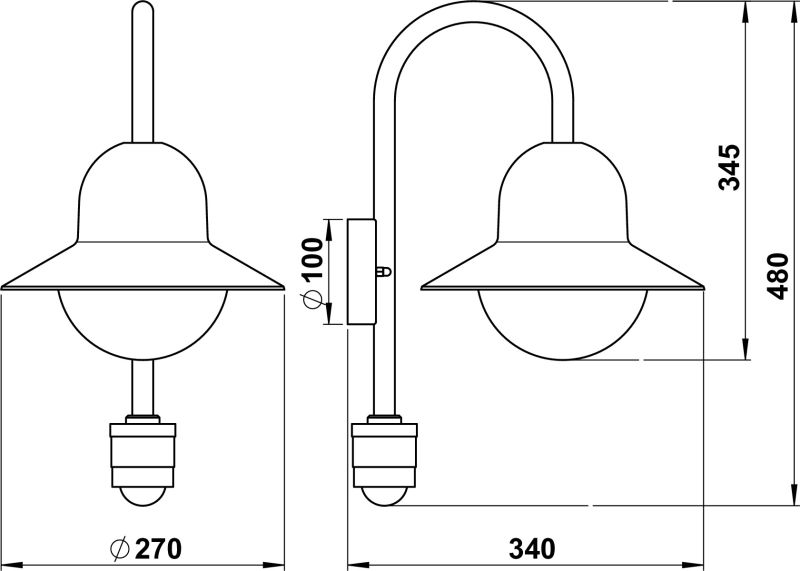

Dimensioned drawing
Instruction manual
Light distribution curve - Eulumdat/LDT
Offertext
For: 660661
Offertext
For: 680661
Offertext
For: 690661
Full catalog 21 / 22
Spare parts
90210094 - G 94, glass opal matt show
Accessories
661005 - Corner bracket round type ..1005, Black
Für: 660661
show
681005 - Corner bracket round type ..1005, White
Für: 680661
show
691005 - Corner bracket round type ..1005, Stainless steel
Für: 690661
show
90750100 - LED Retrofit Classic show

Additional information

Weight N/A
Suitable for wall mounting

Yes

Suitable for lamp power

1 – 75 W

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Lamp holder

E27

Light sharing

Symmetric

Voltage type

AC

Type of control gear

Not required

Nominal voltage

230 V

Dimming phase cut-on

Yes

Beam angle

Open beam/diffuse

Light output

Direct

Dimming phase cut-off

Yes

Protection class

I

Dimming manufacturer's proprietary system

Yes

Dimming depending on control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Material housing

Aluminium

Material cover

Glass opal

Colour housing

Black, Silver, White

Mounting Type

Wand

Style

Edelstahl, Modern

Unified Glare Ratio (UGR)

1

Coverage

360 °

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

With movement sensor

Yes

With light sensor

Yes

Light type

Wandleuchte

Height

< 700 mm

Surface protection housing

Lacquered

Power factor

1

Height/depth

480 mm

Length

340 mm

Outer diameter

270 mm

Type of wiring

Ending

No dim function

Yes

Number of poles

3

Conductor cross section

2.5 mm²

Shape

Eckig

Degree of protection (IP)

IP44

Light output

1-seitig

Max. system power

75 W

Lowest energy efficiency class of the exchangeable lamp

E

Connection type

Screwed terminal

Photobiological safety according to EN 62471

RG1
