Data sheet
Article number
Select a color, please

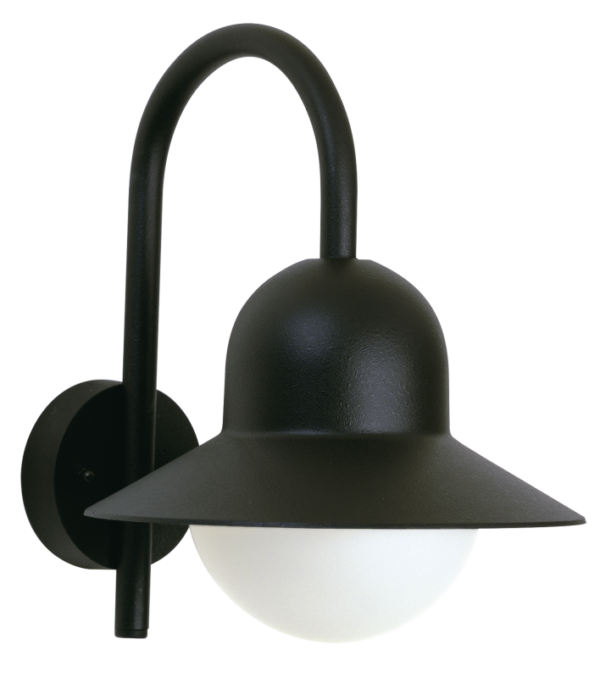

Wall light
type ..0662
€141,50 – €162,80
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

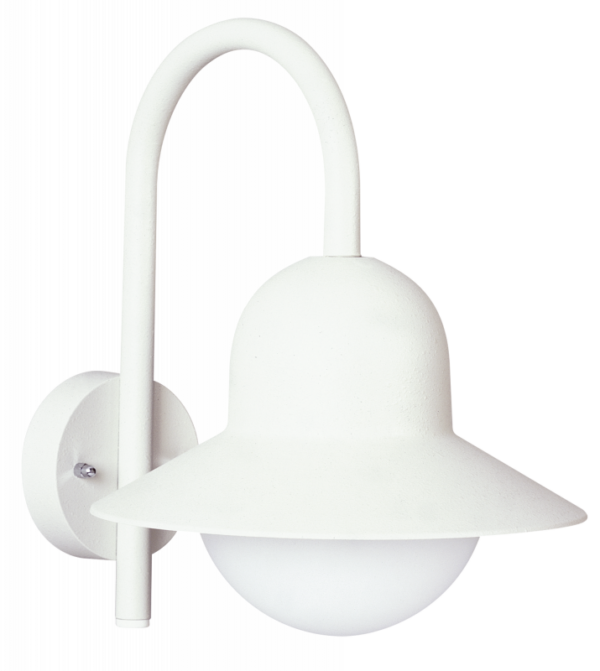

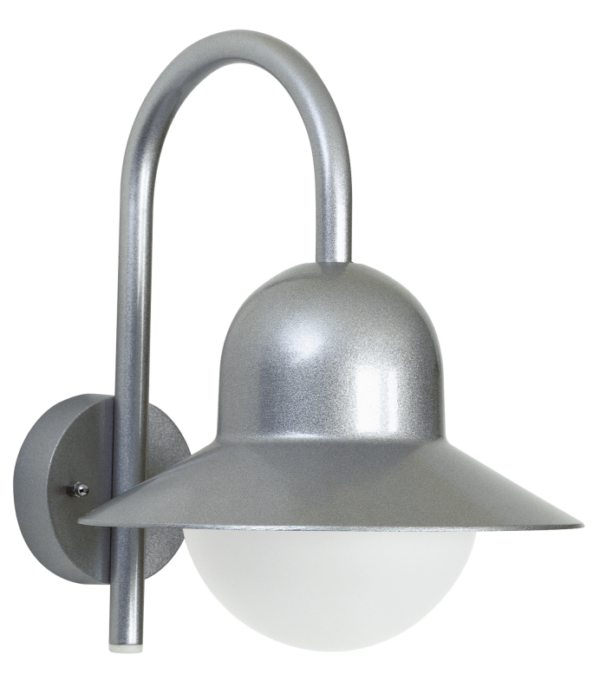

Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Suitable for surface mounting | Yes |
| Voltage type | AC |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Power factor | 1 |
| Beam angle | Open beam/diffuse |
| Dimming manufacturer's proprietary system | Yes |
| Dimming phase cut-on | Yes |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 1 |
| Protection class | I |
| Type of wiring | Ending |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Max. system power | 75 W |
| Height | < 700 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |

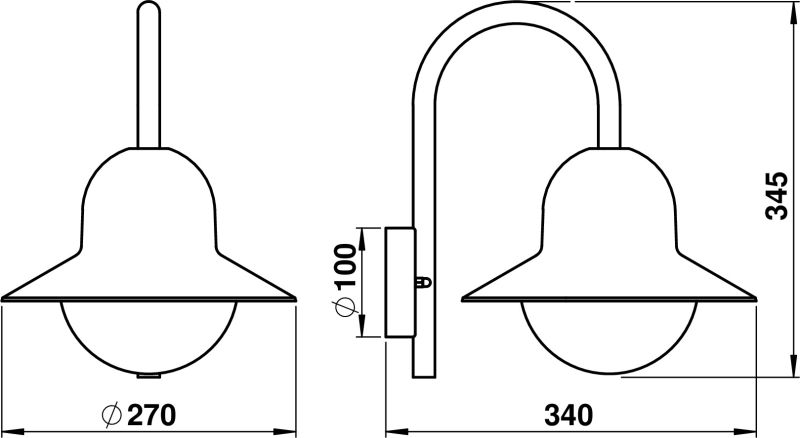

| Length | 340 mm |
| Light output | Direct |
| Number of poles | 3 |
| Outer diameter | 270 mm |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Conductor cross section | 2.5 mm² |
| No dim function | Yes |
| Light sharing | Symmetric |
| Connection type | Screwed terminal |
| Shape | Eckig |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Light output | 1-seitig |
| Height/depth | 345 mm |
| Dimming depending on control gear | Yes |
| Degree of protection (IP) | IP44 |
| Style | Edelstahl, Modern |
| Surface protection housing | Lacquered |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
Documents and files
Data sheet
Spare parts
| 90210094 - G 94, glass opal matt | show |
