Article number 690691

Wall light

type ..0691

This product is no longer in our assortment.

Nicht lieferbar

Specifications

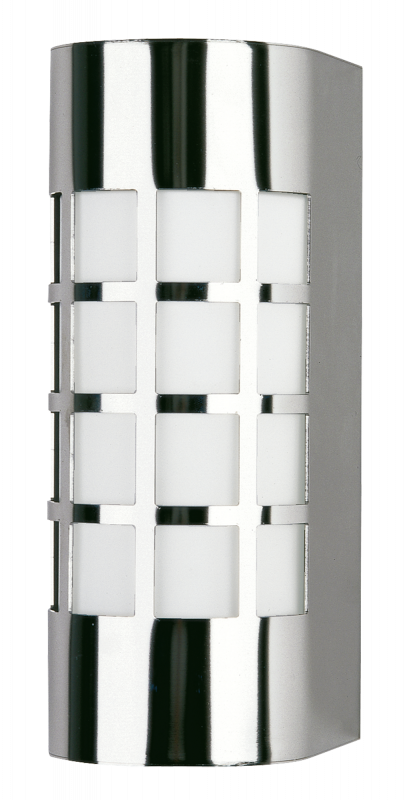

Albert wall lamp 690691
in stainless steel with opal glass, mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27.protection class IP 44 – protection class : 114 x 300 x 130 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 2,60 kg
Unified Glare Ratio (UGR)

1

Dimming phase cut-on

Yes

Dimming manufacturer's proprietary system

Yes

Protection class

I

Suitable for surface mounting

Yes

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Nominal voltage

230 V

Type of control gear

Not required

Voltage type

AC

Conductor cross section

2.5 mm²

Power factor

1

Width

115 mm

Height/depth

300 mm

Length

130 mm

Type of wiring

Ending

Number of poles

3

Light type

Wandleuchte

Max. system power

75 W

Light output

Direct

Light sharing

Symmetric

Degree of protection (IP)

IP44

Light output

1-seitig

Lowest energy efficiency class of the exchangeable lamp

E

No dim function

Yes

Suitable for wall mounting

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Beam angle

Open beam/diffuse

Connection type

Screwed terminal

Mounting Type

Wand

Photobiological safety according to EN 62471

RG1

Dimming depending on control gear

Yes

Height

< 700 mm

Surface protection housing

Untreated

Highest energy efficiency class of the exchangeable lamp

A++

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 33 KB

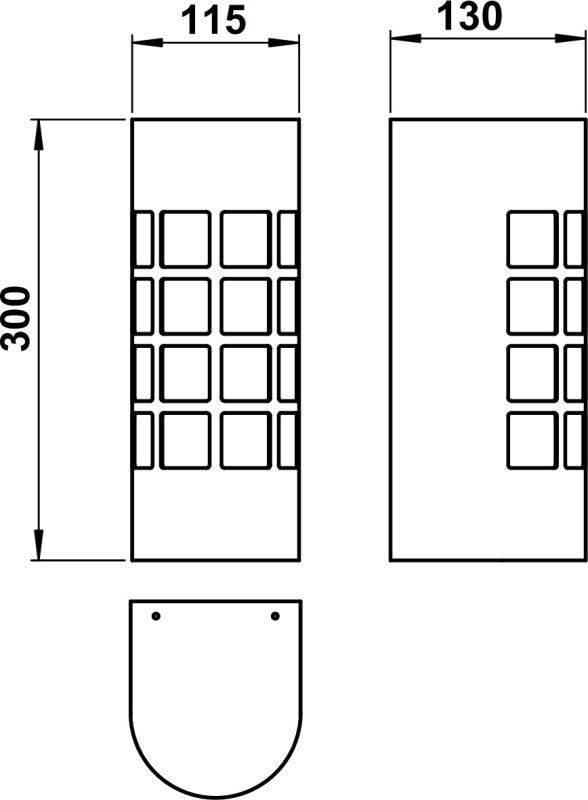

Dimensioned drawing
PDF | 21 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210259 - G 259, glass opal matt Thread 84,5 mm -long show
