Data sheet
Article number
Select a color, please
Wall light
type ..6167
€182,60 – €210,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 44 protection.
Luminaire has a 2-sided light emission (top/bottom).
Material housing
Aluminium
Colour housing

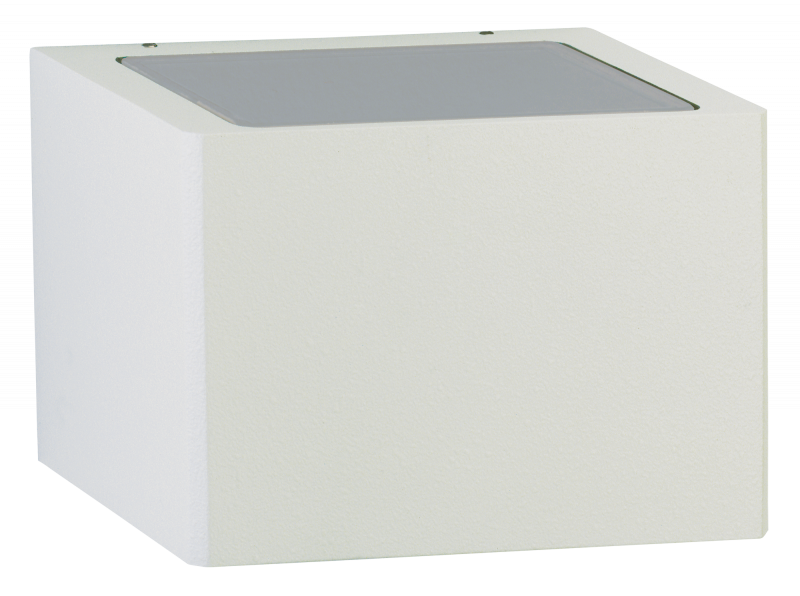

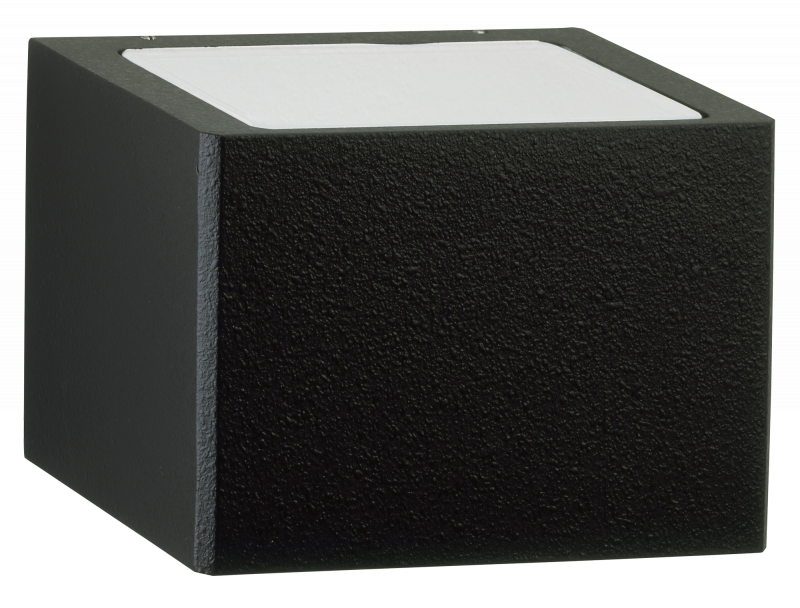

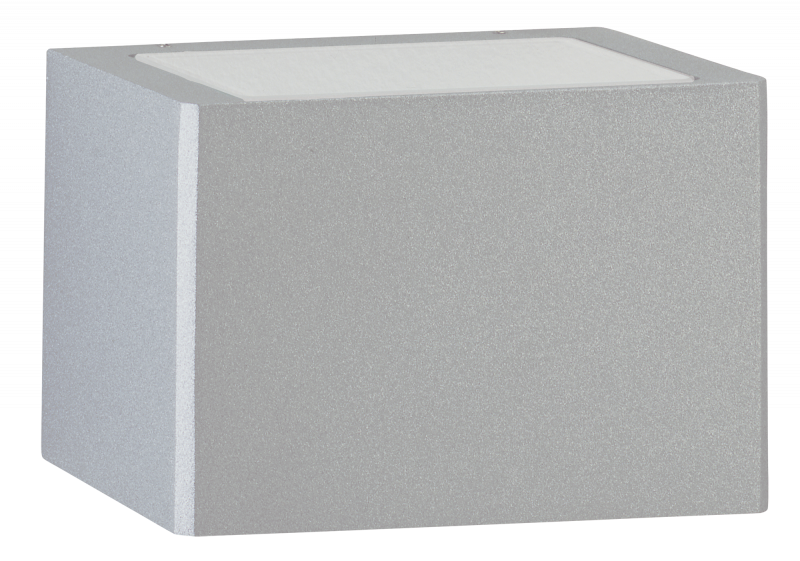

Black, Silver, White
Lamp type
HV halogen lamp
Lamp holder
G9
Suitable for lamp power
1 - 60 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Suitable for number of lamps | 1 |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Number of poles | 3 |
| Type of wiring | Ending |
| Voltage type | AC/DC |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Power factor | 1 |
| Dimming depending on control gear | Yes |
| Light output | 1-seitig |
| No dim function | Yes |

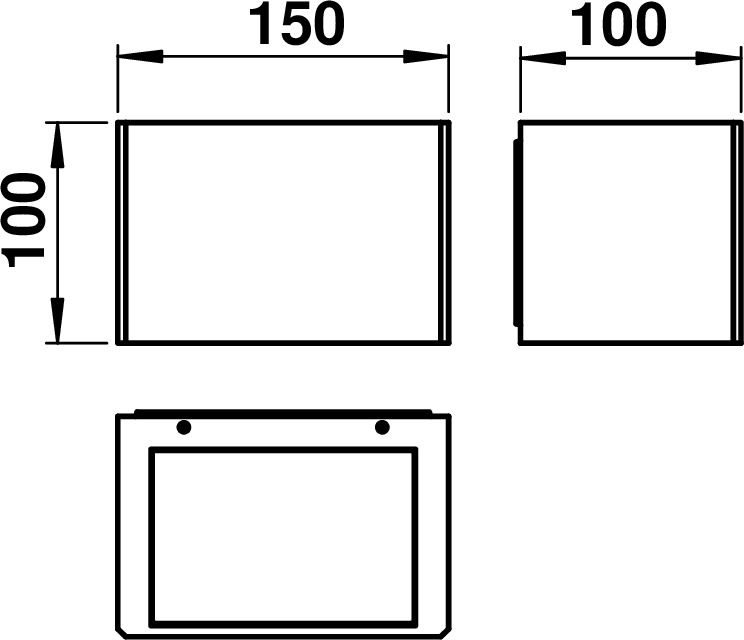

| Width | 150 mm |
| Height/depth | 100 mm |
| Length | 100 mm |
| Conductor cross section | 2.5 mm² |
| Shape | Eckig |
| Mounting Type | Wand |
| Light type | Wandleuchte |
| Max. system power | 60 W |
| Suitable for surface mounting | Yes |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Degree of protection (IP) | IP44 |
| Protection class | I |
| Connection type | Screwed terminal |
| Light sharing | Symmetric |
| Height | < 700 mm |
| Style | Modern |
| Surface protection housing | Lacquered |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
