Wall light

Name: Wall light type ..6343
SKU: 696343
Price: 441.30 EUR
Availability: InStock

type ..6343

€441,30

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer

Specifications

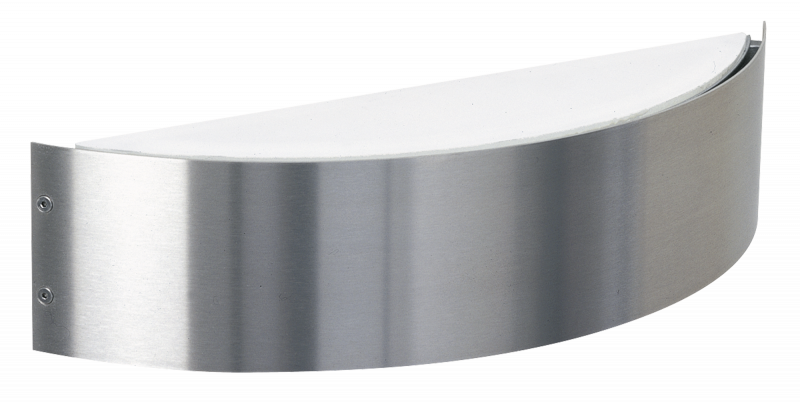

Albert wall lamp 696343

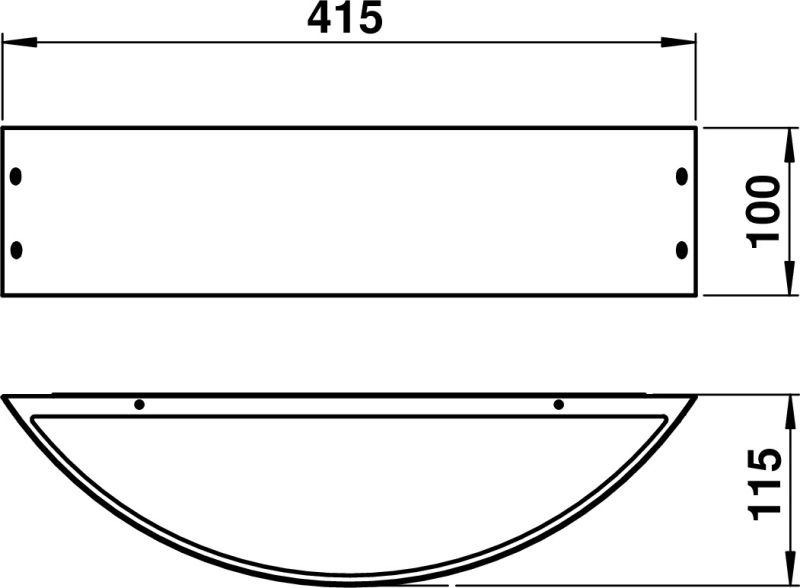

with 2-sided light emission, made of stainless steel with opal glass, mounting plate made of cast aluminium.2 x LED 9,6 W, warm white 3000 K, 720 IP 44 each – protection class : 415 x 100 x 115 mm

Features

Luminaire can be operated with 230 V, 0/50-60 Hz.

Luminaire has IP 44 protection.

Luminaire is equipped with LED components.

LED components can be replaced.

Luminaire has a 2-sided light emission (top/bottom).

Material housing

Stainless steel

Colour housing

Stainless steel

Lamp type

LED exchangeable

With light source

Yes

Suitable for lamp power

19.2 W

Rated luminous flux according to IEC 62722-2-1

1440 lm

Colour temperature

3000 K

Material cover

Glass opal

Weight	2,70 kg
Dimming depending on control gear	Yes
Power factor	0.9
With control gear	Yes
Suitable for number of lamps	2
Type of wiring	Ending
Number of poles	3
Voltage type	AC/DC
Suitable for surface mounting	Yes
Light sharing	Symmetric
Height/depth	100 mm
Length	115 mm
Energy efficiency class of the provided exchangeable built-in lamp	E
Width	415 mm
No dim function	Yes
Nominal voltage	230 V
Colour rendering index CRI	80-89
Conductor cross section	2.5 mm²
Lowest energy efficiency class of the exchangeable lamp	E
Degree of protection (IP)	IP44
Protection class	I
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Exchangeable control gear	Yes
Light output	Direct
Colour consistency (McAdam ellipse)	SDCM3
Highest energy efficiency class of the exchangeable lamp	A++
Colour of light	White
Style	Edelstahl, Modern
Mounting Type	Wand
Light type	Wandleuchte
Max. system power	19.2 W
Max. number of luminaires per miniature circuit breaker C16	30
Surface protection housing	Untreated
Max. number of luminaires per miniature circuit breaker B16	20
Suitable for wall mounting	Yes
Photobiological safety according to EN 62471	RG1
Height	< 700 mm
Type of control gear	LED operating device voltage-controlled
Light output	1-seitig
Connection type	Screwed terminal
Unified Glare Ratio (UGR)	1
Stroboscope effect value SVM	0.4
Flickering value Pst LM	1
Beam angle	Open beam/diffuse
Shape	Eckig
