Weight	N/A
Suitable for surface mounting	Yes

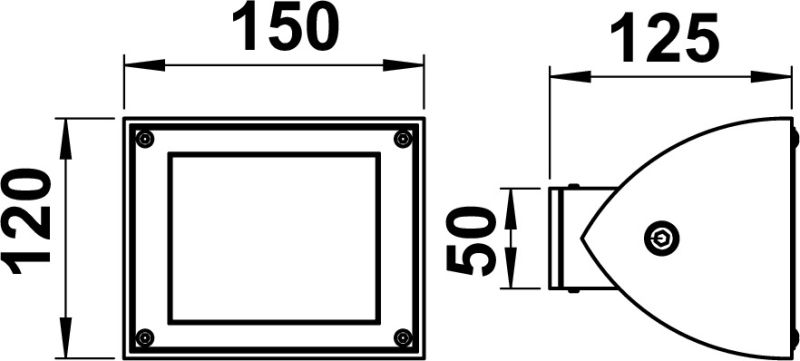

Width	150 mm
Suitable for ceiling mounting	Yes
Max. system power	16 W
Adjustability	Swivelling
Nominal voltage	230 V
Type of control gear	LED operating device voltage-controlled
With control gear	Yes
Voltage type	AC
Surface protection	Lacquered
Dimming phase cut-off	Yes
Suitable for number of lamps	1
Suitable for pedestal/floor mounting	Yes
Energy efficiency class of the provided exchangeable built-in lamp	E
Degree of protection (IP)	IP54
Height/depth	120 mm
No dim function	Yes
Beam angle	Medium beam 21-40°
Colour of light	White
Colour rendering index CRI	80-89
Number of poles	3
Power factor	0.9
Protection class	I
Light sharing	Symmetric
Colour consistency (McAdam ellipse)	SDCM3
Rated ambient temperature according to IEC62722-2-1	15 – 25 °C
Light output	Direct
Luminous flux	1600 lm
Connectable conductor cross section	0.75 – 2.5 mm²
Conductor cross section	2.5 mm²
Connection type	Screwed terminal
Light output	1-seitig
Length	125 mm
Type of wiring	Ending
Mounting Type	Decke
Height	< 700 mm
Suitable for wall mounting	Yes
Exchangeable control gear	Yes
Flickering value Pst LM	1
Beam angle adjustable	Continuously variable
Stroboscope effect value SVM	0.4
Max. number of luminaires per miniature circuit breaker B16	20
Max. number of luminaires per miniature circuit breaker C16	30
Unified Glare Ratio (UGR)	1
Shape	Eckig

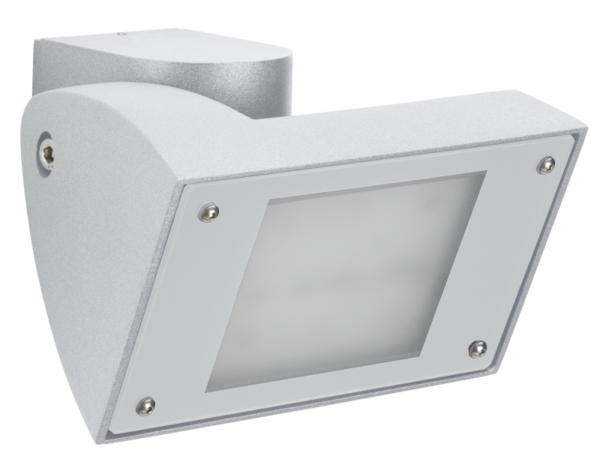

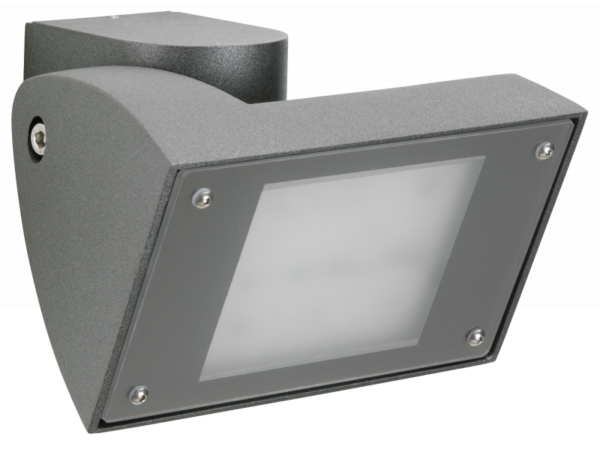

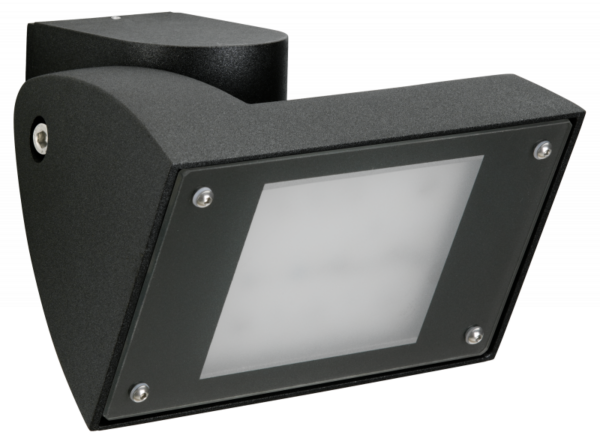

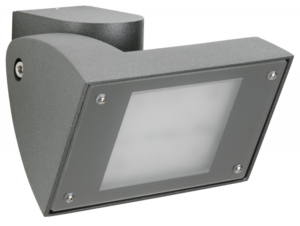

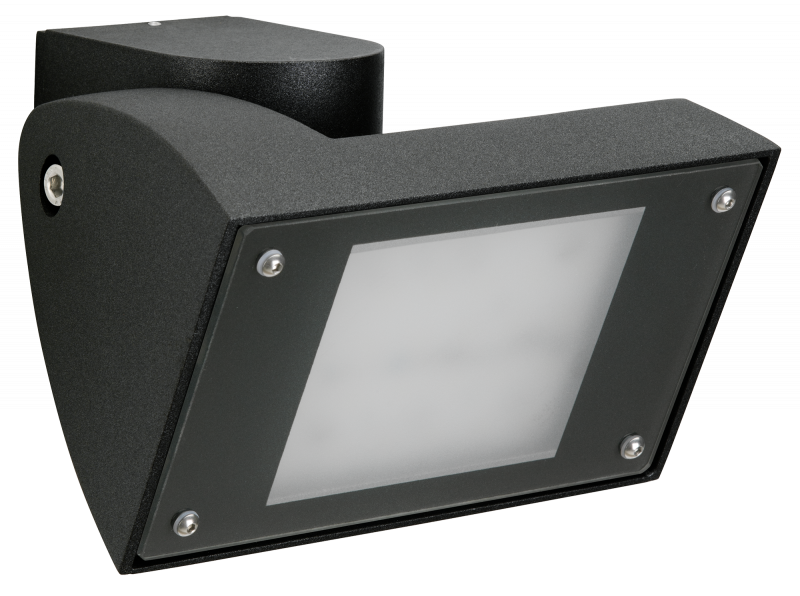

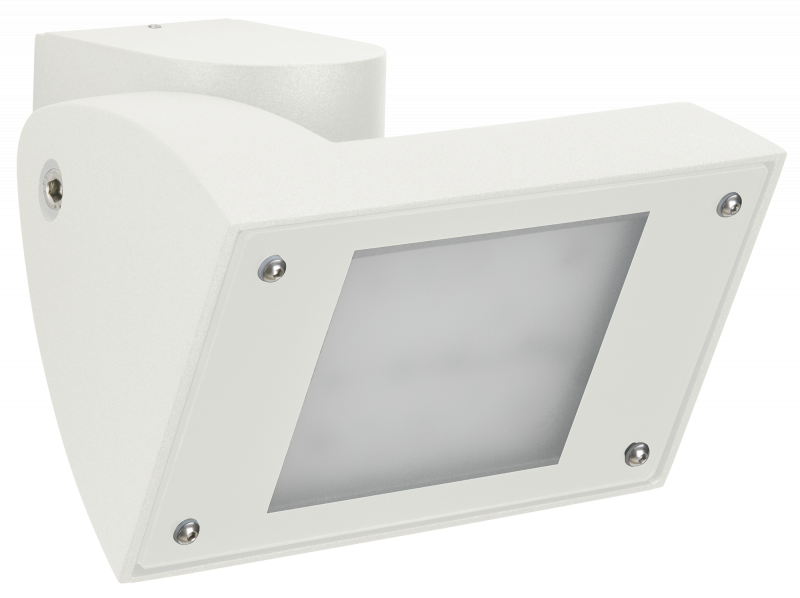

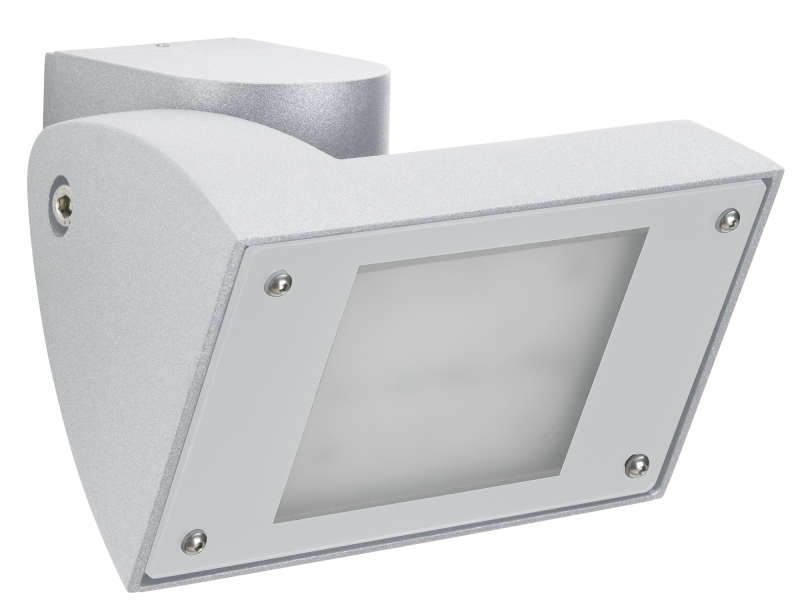

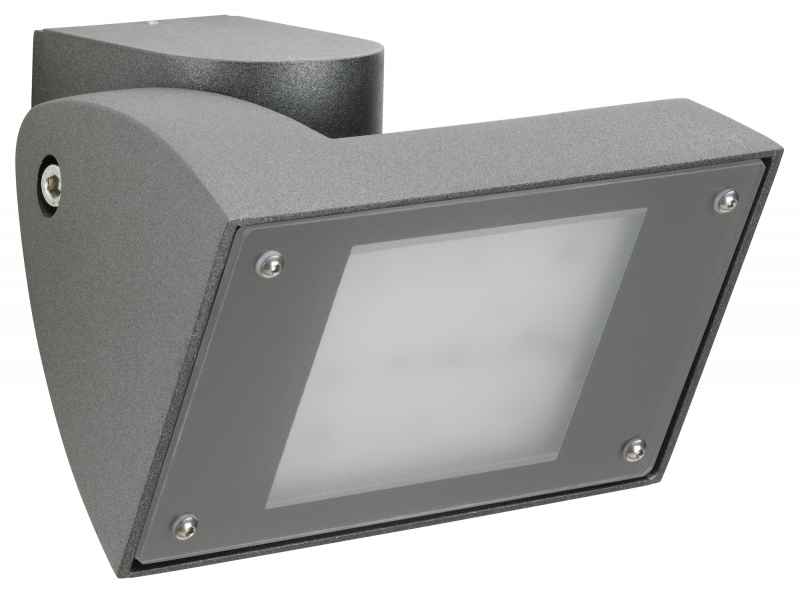

Wall spotlight
